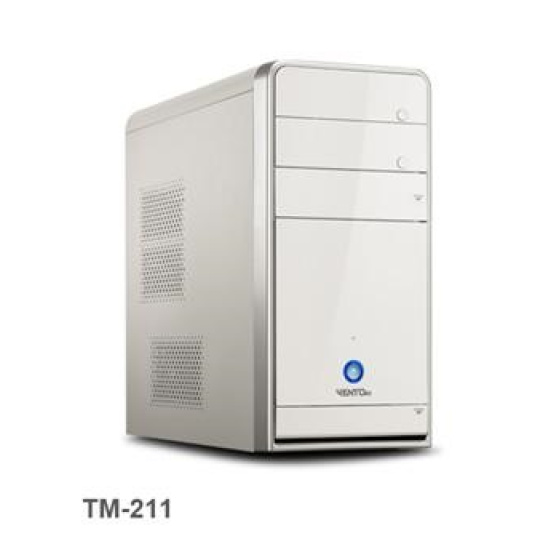

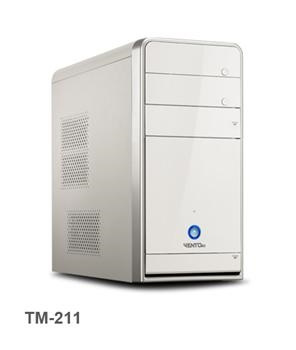

ACUTAKE VENTO TM211 Second Edition

Nová vylepšená verze s nejnovějším HDaudio či USB 2.0.

Stylish Bezel
5.25" external bay tray in-out structure
3.5" external bay and front I/O coveredŁ
Snap on/off solution for quick installation
Multi-color power LED as HDD runs

Flexible Front I/O Option
Back window with COM2 and key lock support
Optional front I/O for USB and IEEE1394

Support up to the latest and most powerful processing platform from Intel and AMD
Optional fan for upgraded ventilation
Excellent cooling system with room for expansion
2 new side venting areas dedicated for CPU and AGP in support of enhanced heat dissipation

Solid Mechanical Construction
Full EMI features prevent radiation emission
Friendly design for fast assembly/maintenance
C-curve design enhances mechanical strength and eliminates sharp edges
Folded edge for safe device installation
Space saving

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.

Specification

Dimension w/Bezel (W x H x D) 170 x 355 x 395 mm
Case Size MicroATX Mini Tower
Interface 0.6mm SGCC
MB Form Factor Standard MicroATX
Drive Bays 5.25" Ext Bay x 2
3.5" Ext Bay x 2
3.5" Int Bay x 3
System Fan (mm) Support Front: 80 x 1
Rear: 92 x 1 or 80 x 1
Expansion Slots 4
Weight N.W. 4.3 kg
G.W. 5.2 kg
Color Options (Front/Band/Side) TM-210 White/Silver/White
TM-211 White/Silver/White
Front I/O Configuration Power Supply Options
PS2 300/350W

Front I/O Options
1) W/ O front I/O
2) W/ USB x 2 + Audio x 2
3) W/ USB x 4 + Audio x 2 + 1394 x1
