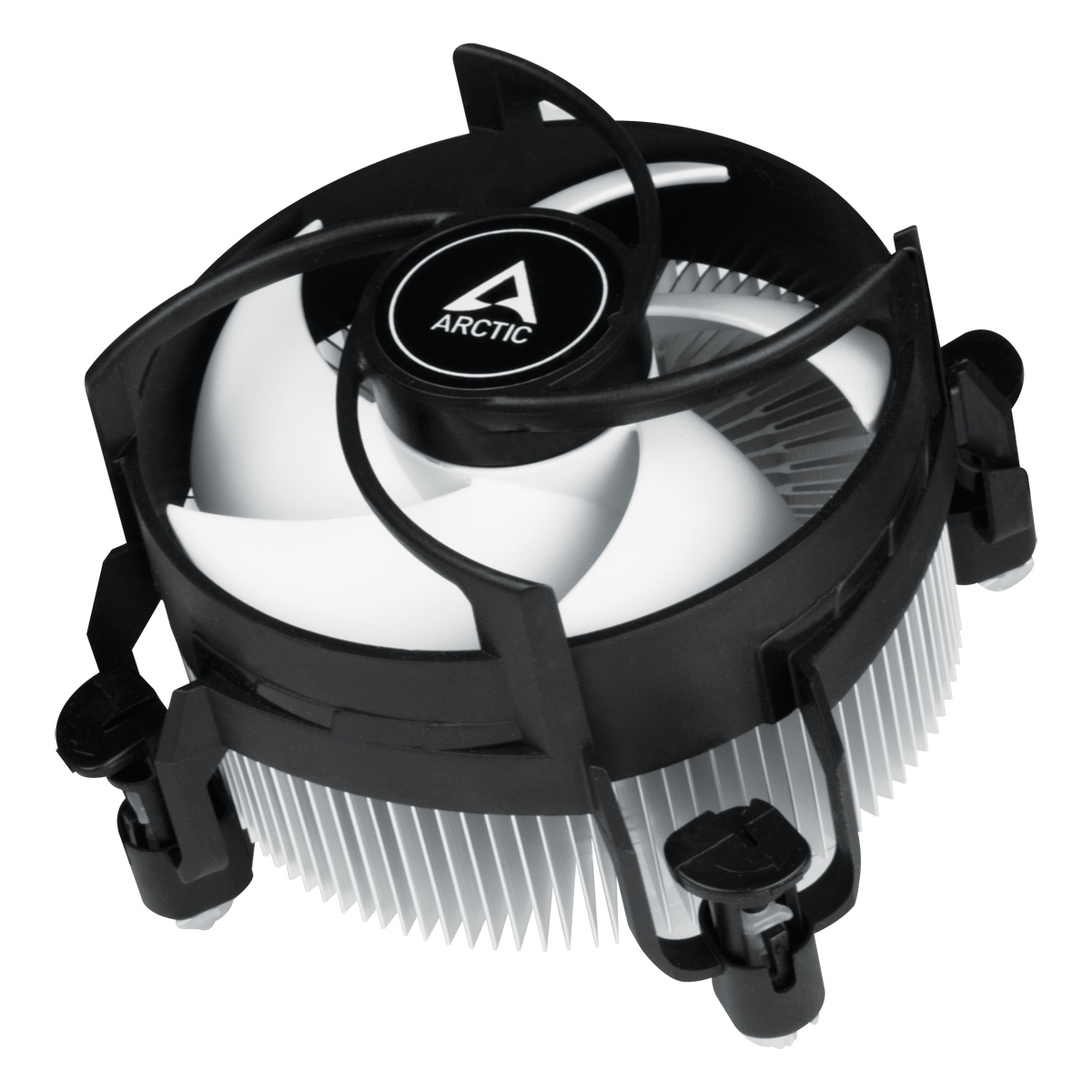

ARCTIC Alpine 17

Alpine 17 - Compact Intel CPU Cooler

DESIGNED FOR INTEL ALDER LAKE
The Alpine 17 is exclusively compatible with Socket LGA1700 and Intel's latest Alder Lake CPUs.

FULL CONTROL WITH WIDE RPM RANGE
The Alpine 17 features a very wide PWM-controlled speed range. This reduces noise to the minimum while also guaranteeing the highest cooling performance.

EASY AND TOOL-FREE INSTALLATION
With the MX-4 already pre-applied, the Alpine 17 can be mounted directly. Thanks to the push pins, installation is a breeze. Additional tools are not needed to mount the cooler.

HIGH-QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction inside the bearing is reduced and higher efficiency is achieved. In this way, less heat develops, there is less bearing noise and the fan life is extended.

IMPROVED COOLING PERFORMANCE THROUGH INNOVATIVE HEAT SINK DESIGN
The extra fine cooling fins of the new Alpine are fanned out in a Y-shape. The high thermal conductivity of the aluminum is fully retained in the type of extrusion used. This novel production process makes it possible to produce a high-performance yet very compact radial heat sink. This results in an increase in the surface area of the heat sink, optimization of the airflow and thus an increase in cooling performance.

General data

Compatibillity
Intel Socket: 1700
Ram Clearance: unlimited

Heatsink
Heatsink: Radial
Material: Aluminum
Thermal paste: MX-4 (0.8g)

Fan
Fan Diameter: 92 mm
Speed: 100 - 2000 rpm
Bearing: Fluid Dynamic Bearing
Noise Level: 0.3 Sone
Current/ Voltage: 0.12 A
Anschluss: 4-Pin PWM-Fan-Connector
Speed Control: Pulse Width Modulation - PWM

Dimensions & Weight
Length: 95 mm
Width: 95 mm
Height: 77 mm
Weight: 288 g

Packaging
Width: 99 mm
Height: 82 mm
Length: 99 mm
Weight: 0.319 kg
