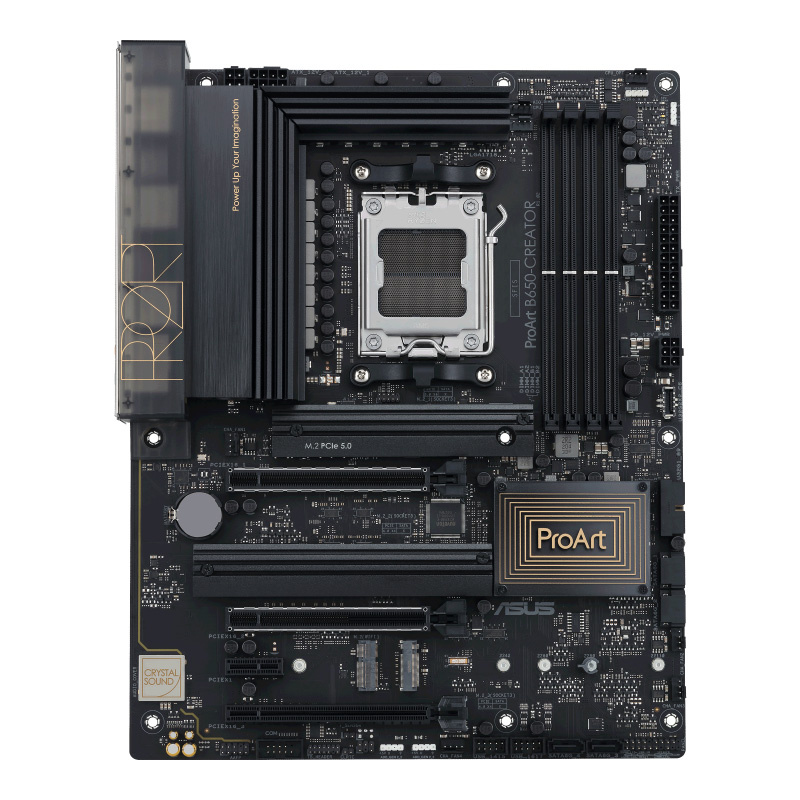

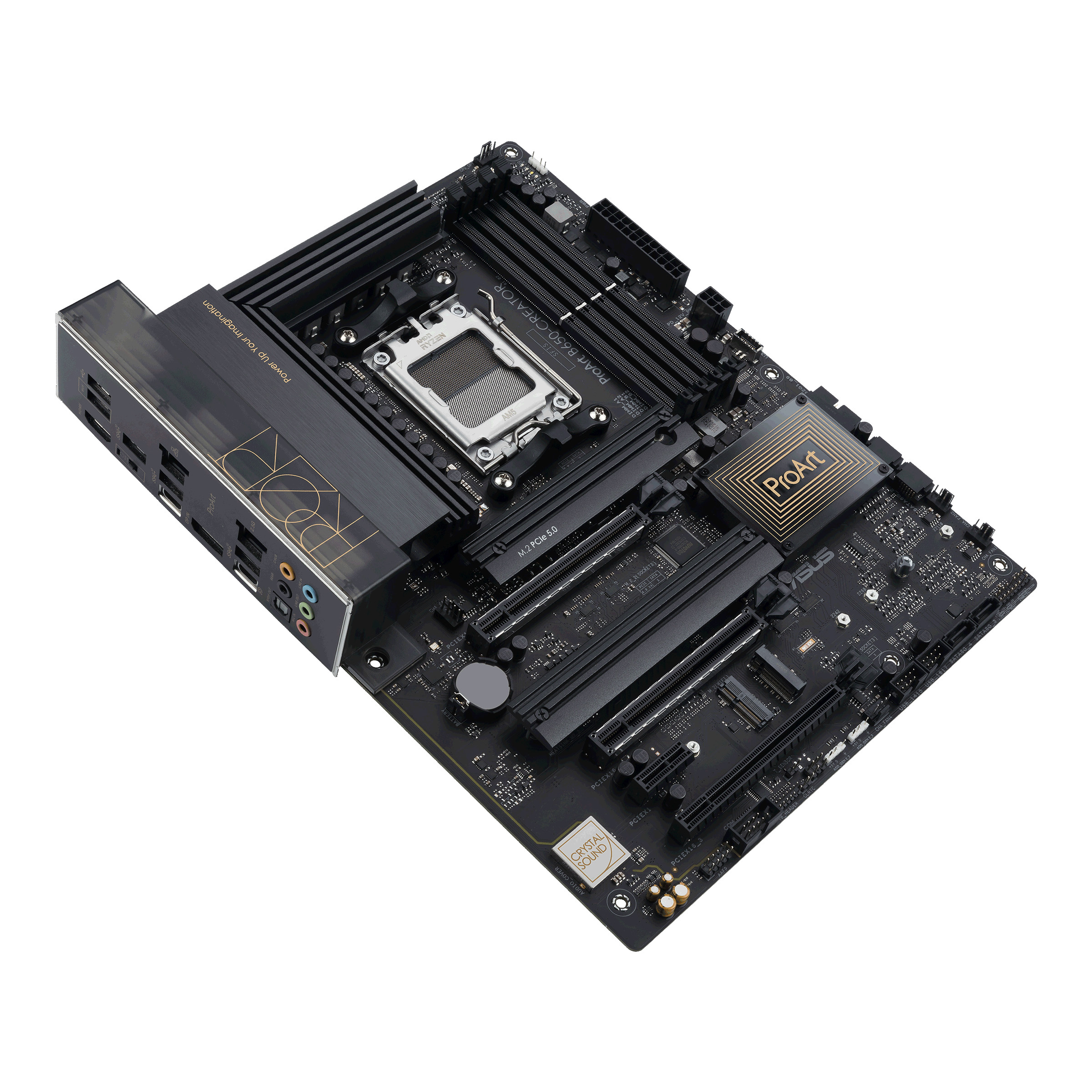

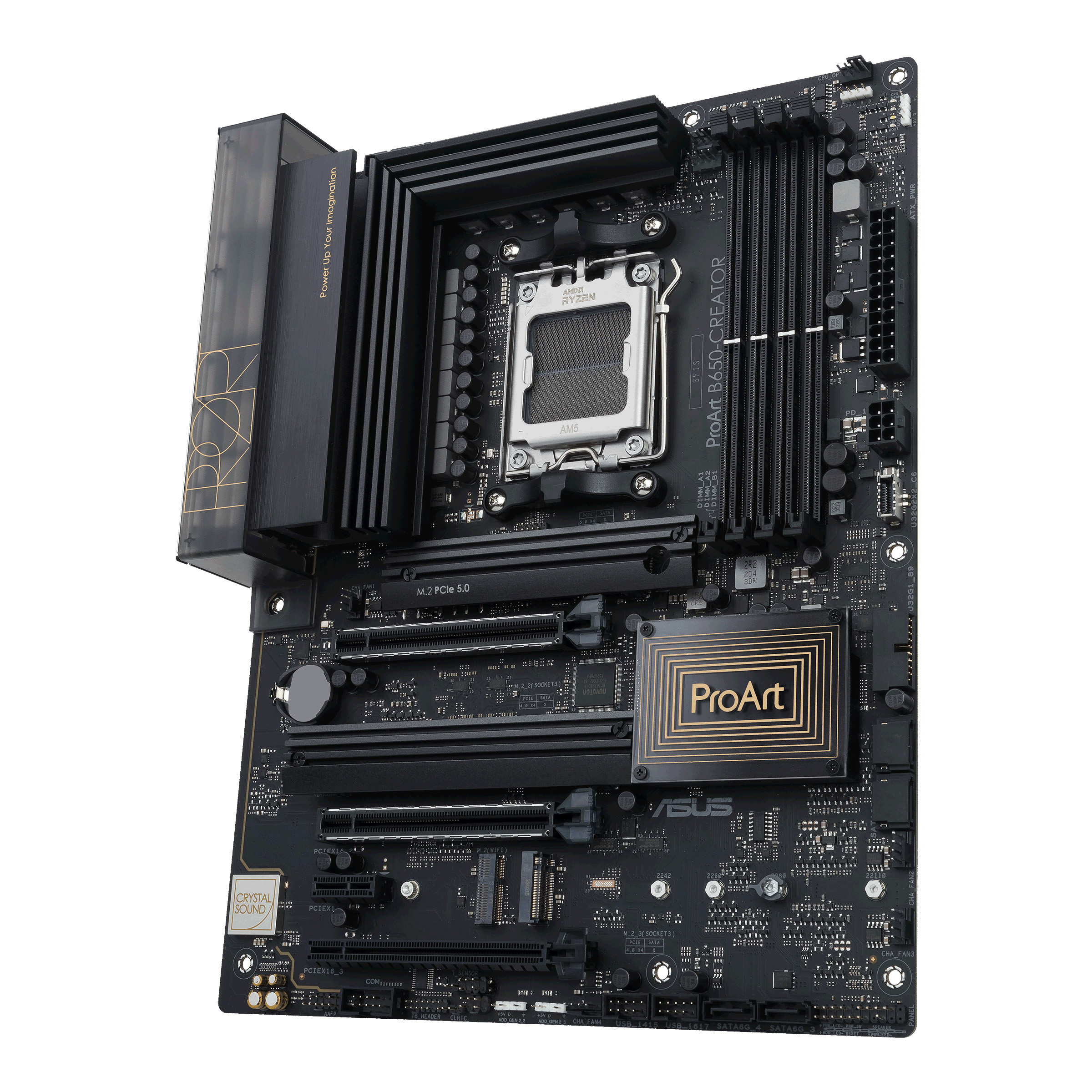

Asus ProArt B650-CREATOR/AM5/ATX

Chipset: AMD B650

Rozměrový formát: ATX Form Factor (30.5 cm x 24.4 cm)
Podpora pro procesory: AMD Ryzen 7000 Series Desktop Processors
Patice procesoru: AM5

Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC, Non-ECC

Grafické výstupy: (na základě procesoru)
*1 x DisplayPort (Input only)
*1 x HDMI port
*1 x USB Type-C

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
*Podpora S/PDIF out port

Síťová karta:
*1 x Realtek 2.5Gb Ethernet
*1 x Realtek 1Gb Ethernet

Rozšiřující sloty:
*2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
*1 x PCIe 4.0 x16 slot (supports x4 mode)
*1 x PCIe 4.0 x1 slot

RAID řadič: RAID 0/1/10

SATA: 4 x SATA 6Gb/s ports
M.2: 3 x M.2 slots

USB:
*Interní:
*1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
*Externí:
*1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )
*4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
*2 x USB 2.0 ports (2 x Type-A)


Interní porty:
*I/O ConnectorsFan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*4 x 4-pin Chassis Fan headers
*Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
*1 x 6-pin PCIe Power connector
*Storage related
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
*USB
*1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
*Miscellaneous
*3 x Addressable Gen 2 headers
*1 x Aura RGB header
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x M.2 slot (Key E)
*1 x 20-5 pin System Panel header
*1 x Thermal Sensor header
*1 x Thunderbolt (USB4) header

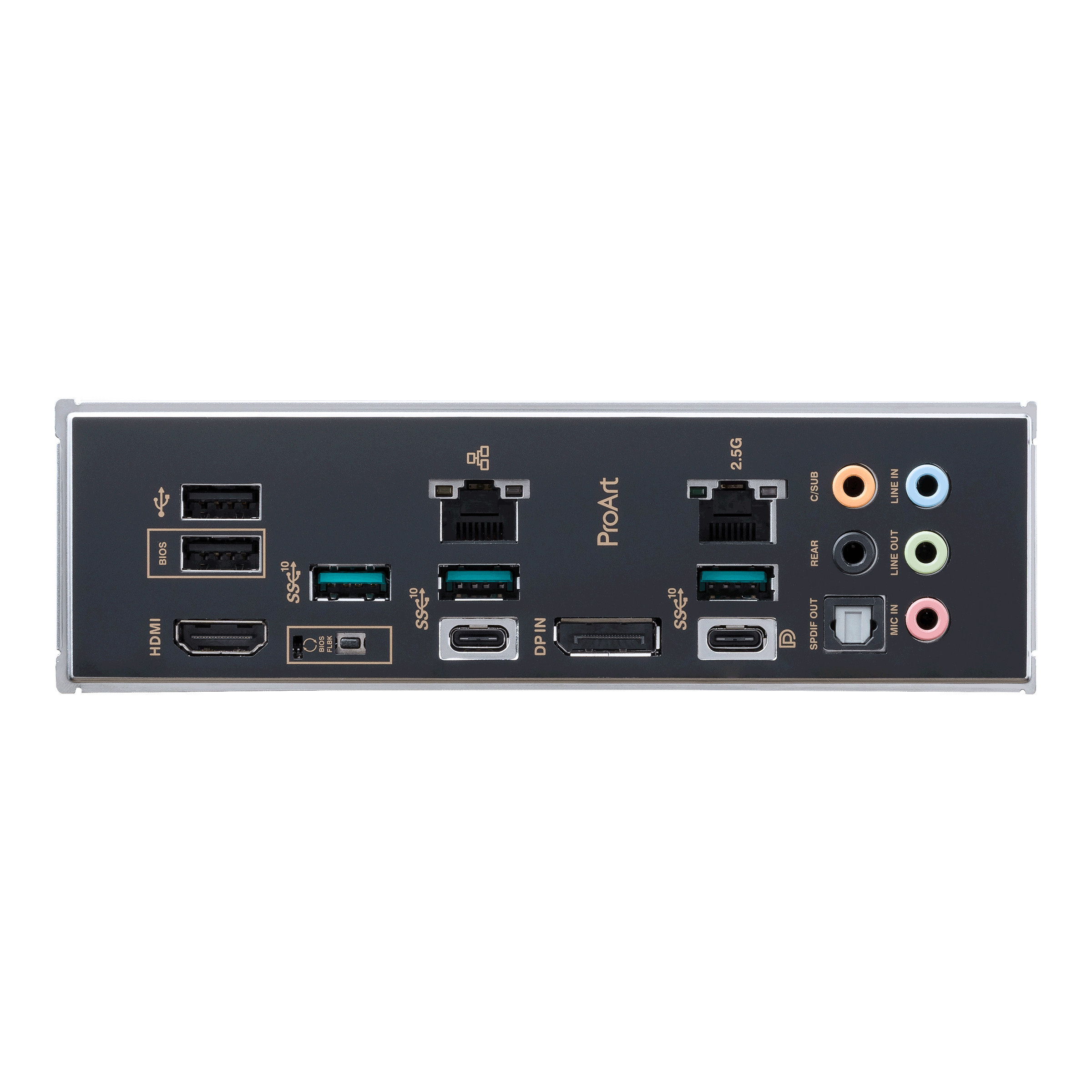

Externí porty:
*1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )
*4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort (Input only)
*1 x HDMI port
*1 x Realtek 2.5Gb Ethernet
*1 x Realtek 1Gb Ethernet
*5 x Audio jacks
*1 x Optical S/PDIF out port
*1 x BIOS FlashBack button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
