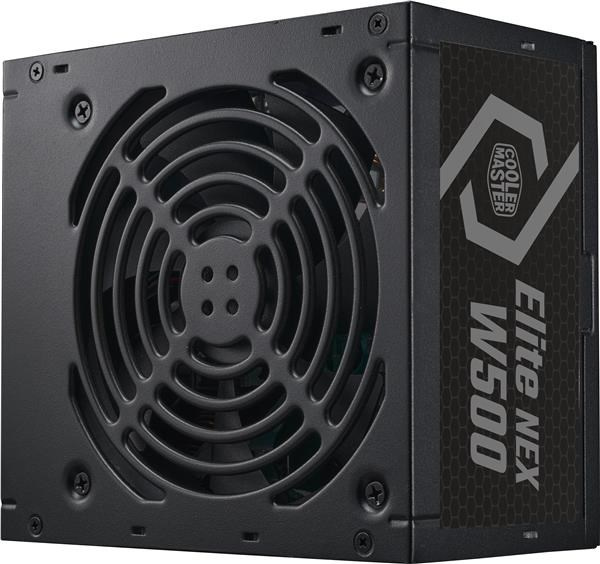

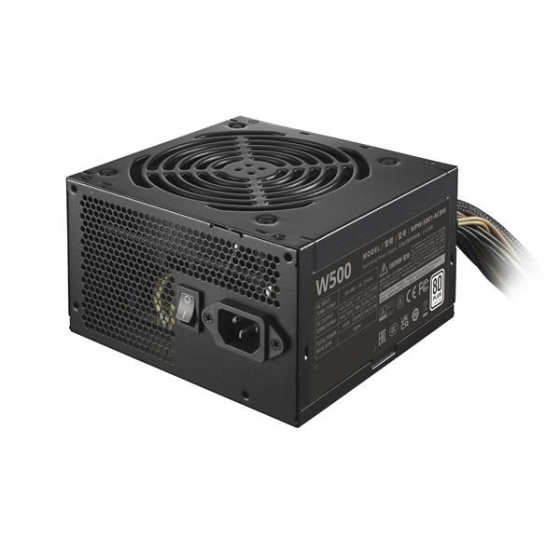

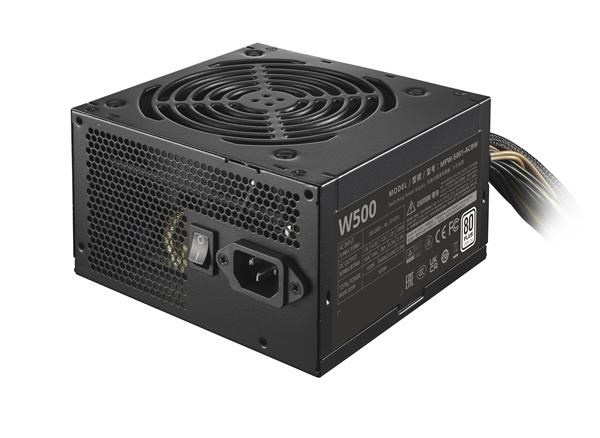

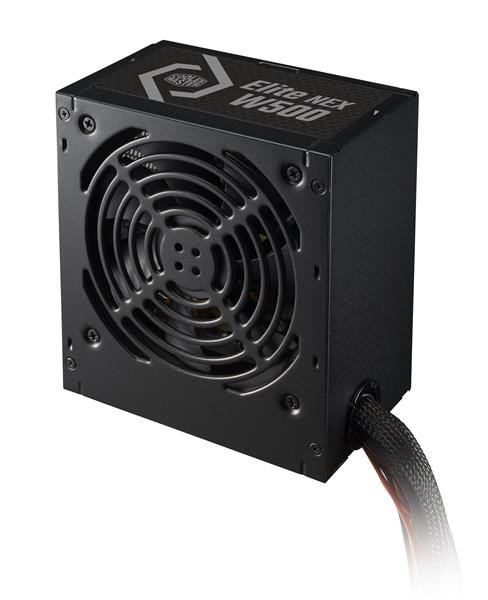

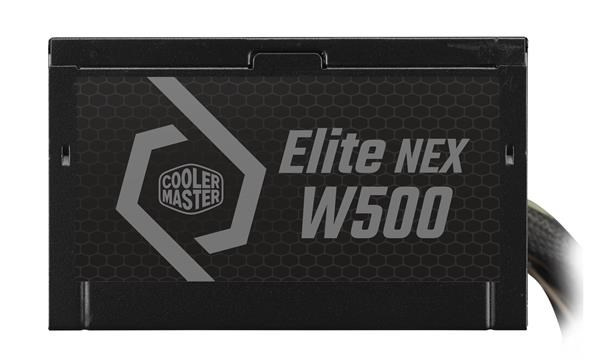

Cooler Master zdroj Elite NEX W500 230V A/EU Cable, 500W

Kód: 1566240
Skladom>5ks
Termín a spôsob doručenia
Formát zdroja:ATX; Konektory:PCIe 8-pin, SATA 15-pin; Konektory pre základnú dosku:ATX 24-pin, EPS 8-pin.prečítajte si viac
Vyberte si zvýhodnené balenie
Množstevné zľavy
53.86
Bežná cena: 62.59  (-14%)
ks
envelope
Váš dotaz
bell
Sledovat
Parametre
Výrobca:
Kód:
1566240
EAN:
4719512129975
Záruka:
3 Rok(ů)
Formát zdroje:
ATX
Konektory:
SATA 15-pin, PCIe 8-pin
Konektory pro základní desku:
ATX 24-pin, EPS 8-pin
Výkon zdroje (W):
500
Popis Cooler Master zdroj Elite NEX W500 230V A/EU Cable, 500W

ELITE NEX 230V

The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, Active PFC, and 3 years warranty deliver a PSU that provides function you can count on. This power supply unit has been engineered for reliability. The Elite NEX is a complete solution, offering performance and stability at an affordable price.

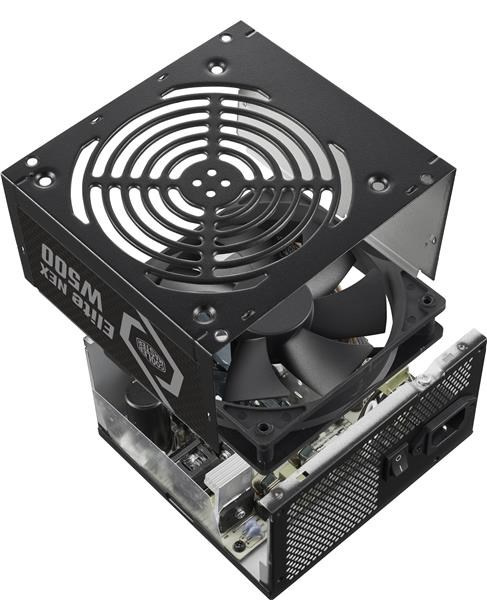

  • Active PFC + Dual Forward Topology Design : Constructed with protective measures normally found in high-end power supplies to increase safety and current stability.
  • High Temperature Resistance : Capable of operating at 40°C under full load allowing a longer lifespan in warmer environments.
  • Peak Power Tolerance : Can reliably push an additional 100W at peak power load for up to 20 seconds.
  • 80 PLUS White EU 230V Efficiency : Maintains a higher efficiency of 85% at typical load.
  • Durable, Reliable, and Safe : Will perform consistently in whatever environment whether it's high altitudes or ultra humid settings.
  • 3 Year Warranty : This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.

TECHNICAL SPECIFICATIONS

ATX Version ATX12V Rev. 2.41
PFC Active PFC
Input Voltage 200 - 240V
Input Current 4A
Input Frequency 50 - 60Hz
Dimension (L x W x H) 140 x 150 x 86mm
Fan Size 120mm
Fan Bearing Sleeve Fan
Efficiency >= 85% @ Typical Load
ERP 2014 LOT 3 Yes
Operating Temperature 0 - 40°C
Power Good Signal 100 - 500 ms
Hold Up Time >= 10ms at 100% Load
MTBF >100,000 hours
Protections OVP / OPP / SCP / UVP / OTP / Inrush Protection
Regulatory TUV,cTUVus,CE,FCC,CCC,EAC,UKCA
ATX 24-pin Connnectors x1 = 1x (550mm)
EPS 4+4 pin Connnectors x1 = 1x (550mm)
SATA Connectors x2 = 1x (400+150mm); x3 = 1x (400+150+150mm)
Peripheral 4-pin Connectors x3 = 1x (400+150+150mm)
PCI-E 6+2 pin Connectors x2 = 1x (500+120mm)

.
