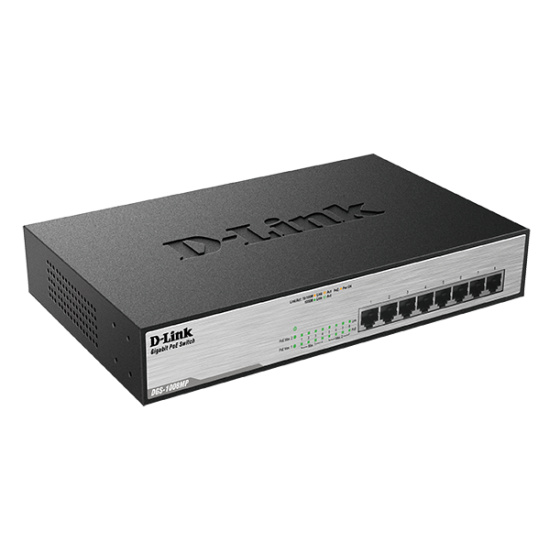

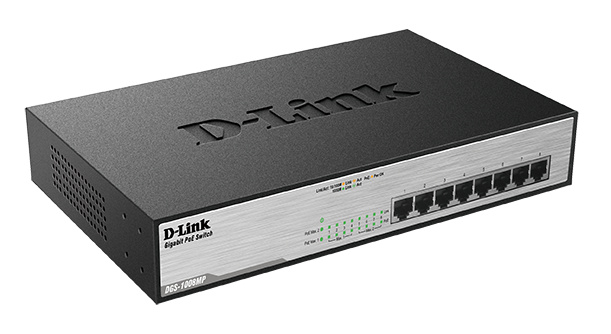

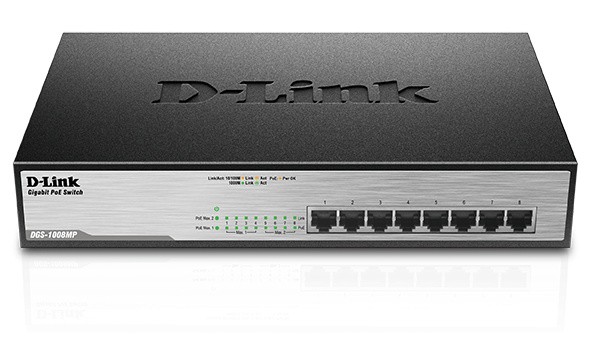

D-Link DGS-1008MP 8x 1000 Desktop Switch, 8PoE port

Overview
Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable - no additional power required.

The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.

SPECIFIKACE/SPECIFICATIONS
Technical Specifications

Size
* 11-inch Desktop/Rackmount size, 1U height

Number of Ports
* 8 10/100/1000 Mbps Ports

Port Standards & Functions
* IEEE 802.3i 10BASE-T Ethernet
* IEEE 802.3u 100BASE-TX Fast Ethernet
* IEEE 802.3ab 1000BASE-T Gigabit Ethernet
* IEEE 802.3at Power over Ethernet
* IEEE 802.3az Energy Efficient Ethernet
* IEEE 802.3x Flow Control supports half/full duplex mode
* ANSI/IEEE 802.3 NWay auto-negotiation

Switching Capacity
* 16 Gbps switching fabric

Media Interface Exchange
* Auto MDI/MDI-X

Transmission Method
* Store-and-forward

MAC Address Table
* 8K entries per device

Packet Buffer Memory
* 128 KB per device

Packet Filtering / Forwarding Rates
* Ethernet: 14,880 pps per port
* Fast Ethernet: 148,800 pps per port
* Gigabit Ethernet: 1,488,000 pps per port

Data Transfer Rates
* Ethernet
* 10 Mbps (half duplex)
* 20 Mbps (full duplex)
* Fast Ethernet
* 100 Mbps (half duplex)
* 200 Mbps (full duplex)
* Gigabit Ethernet
* 2000 Mbps (full duplex)

Network Cables
* 10BASE-T:
* UTP CAT 3/4/5/5e (100 m max.)
* EIA/TIA-586 100-ohm STP (100 max.)
* 100BASE-TX
* UTP CAT 5/5e (100 m max.)
* EIA/TIA-568 100-ohm STP (100 max.)
* 1000BASE-T
* UTP CAT 5/5e(100 m max.)
* EIA/TIA-568 100-ohm STP(100 max.)

Physical
* LED Indicators
* Per port: Activity / Link and Speed
* Per port: Power / Status
* PoE Max 1: Ports 1-4
* PoE Max 2: Ports 5-8

Dimensions
* 280 mm x 180 mm x 44 mm

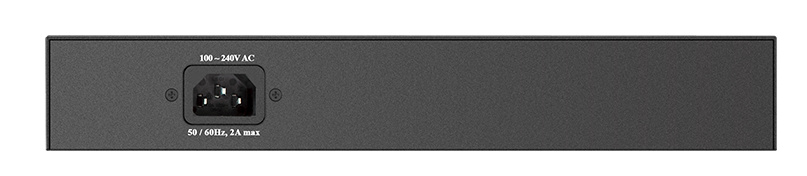

Power Input
* AC Input: 100 to 240 V AC, 50/60 Hz

Maximum PoE Budget
* 140 watts

Power Consumption
* 13.5 watts (PoE off)
* 151 watts (PoE on)
* PoE up to 30 watts per port

Temperature
* Operating: 0 to 40 ° C
* Storage: -10 to 70 ° C

Humidity
* Operating: 0% to 95% RH non-condensing
* Storage: 5% to 95% RH non-condensing

EMI
* CE Class A
* FCC Class A
* VCCI Class A
* CCC Class A
* BSMI Class A

Safety
* cUL
* CB
* LVD
* CCC
* BSMI
