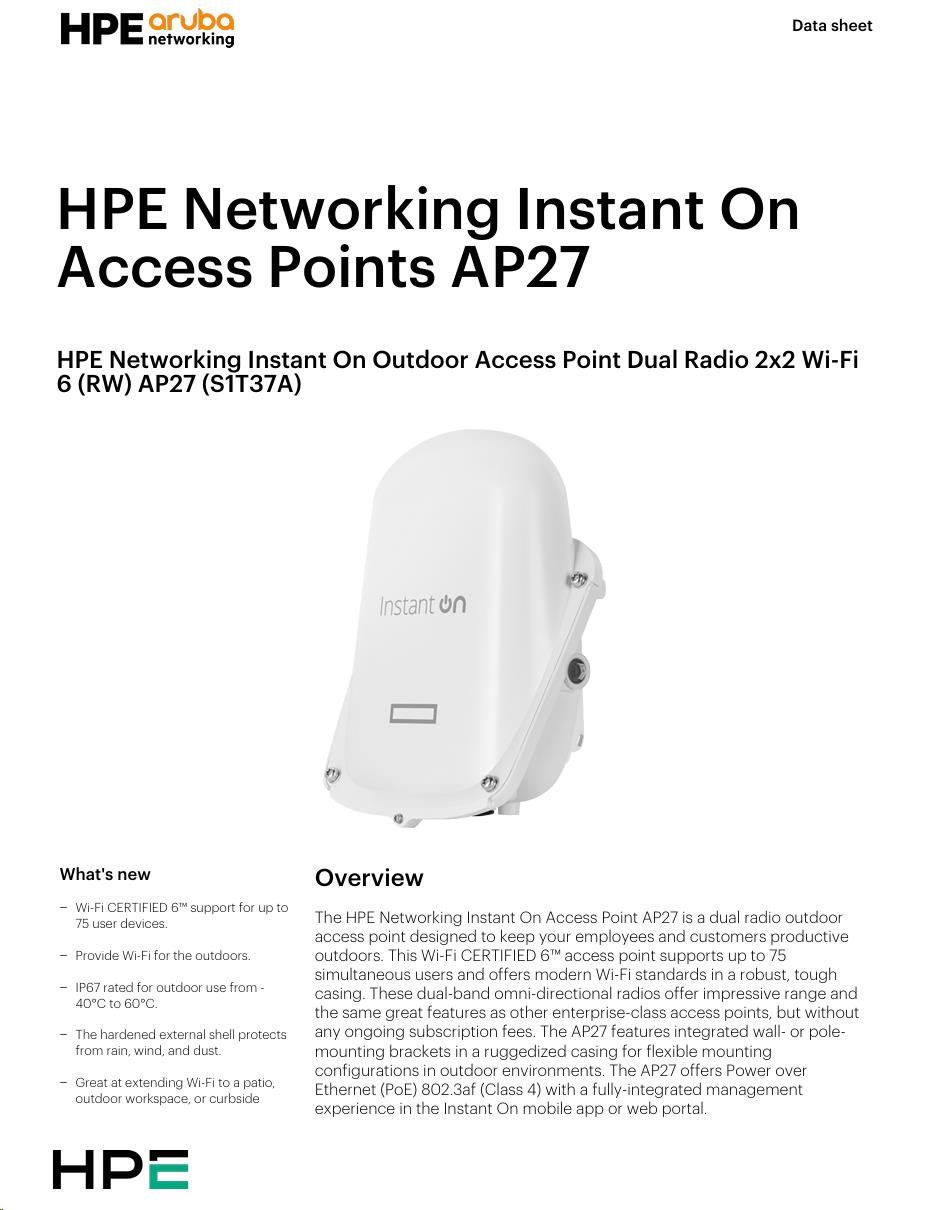

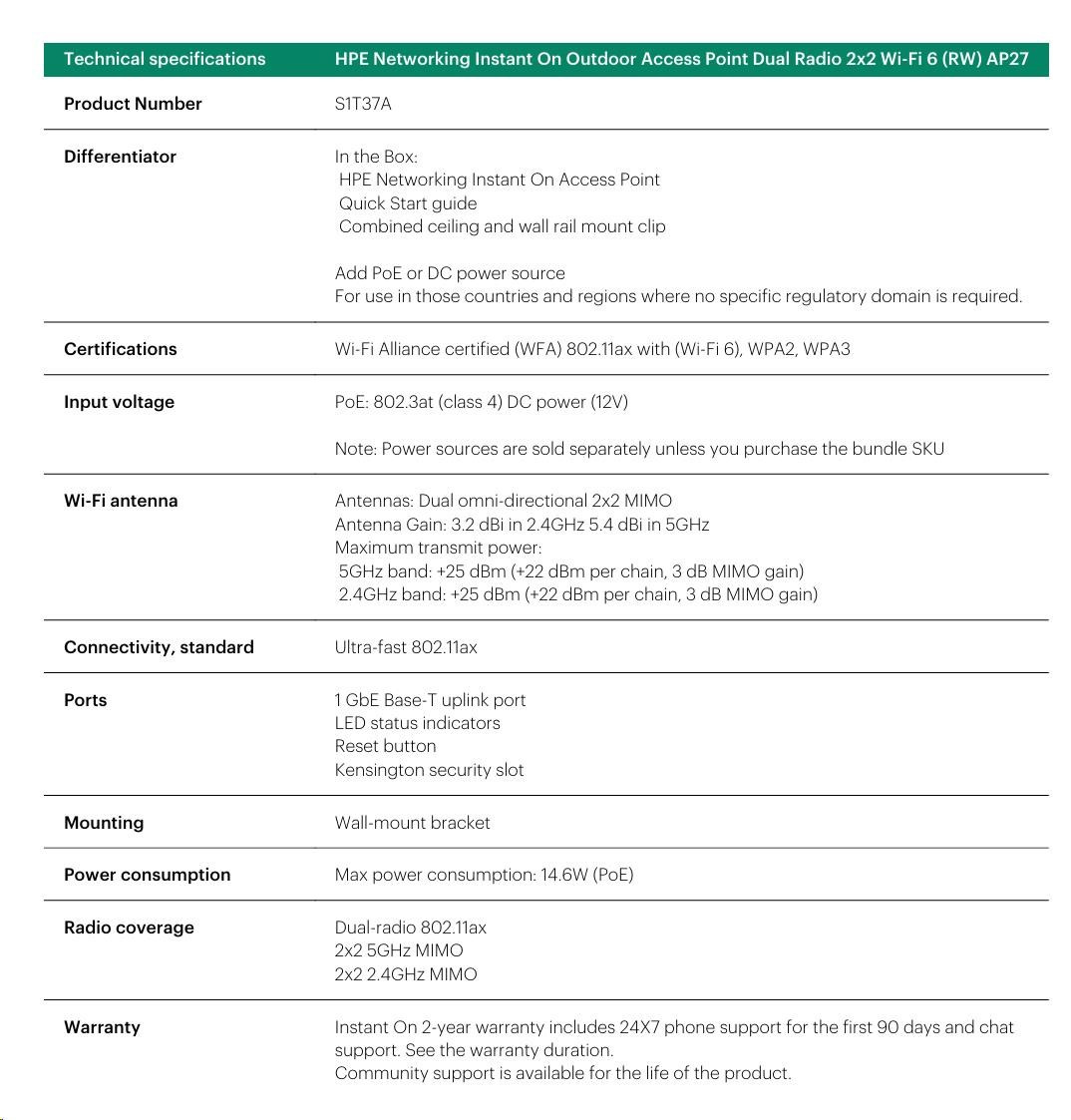

HPE Networking Instant On AP27 (RW) Dual Radio 2x2 Wi-Fi 6 Outdoor Access Point (Powered with a PoE injector)

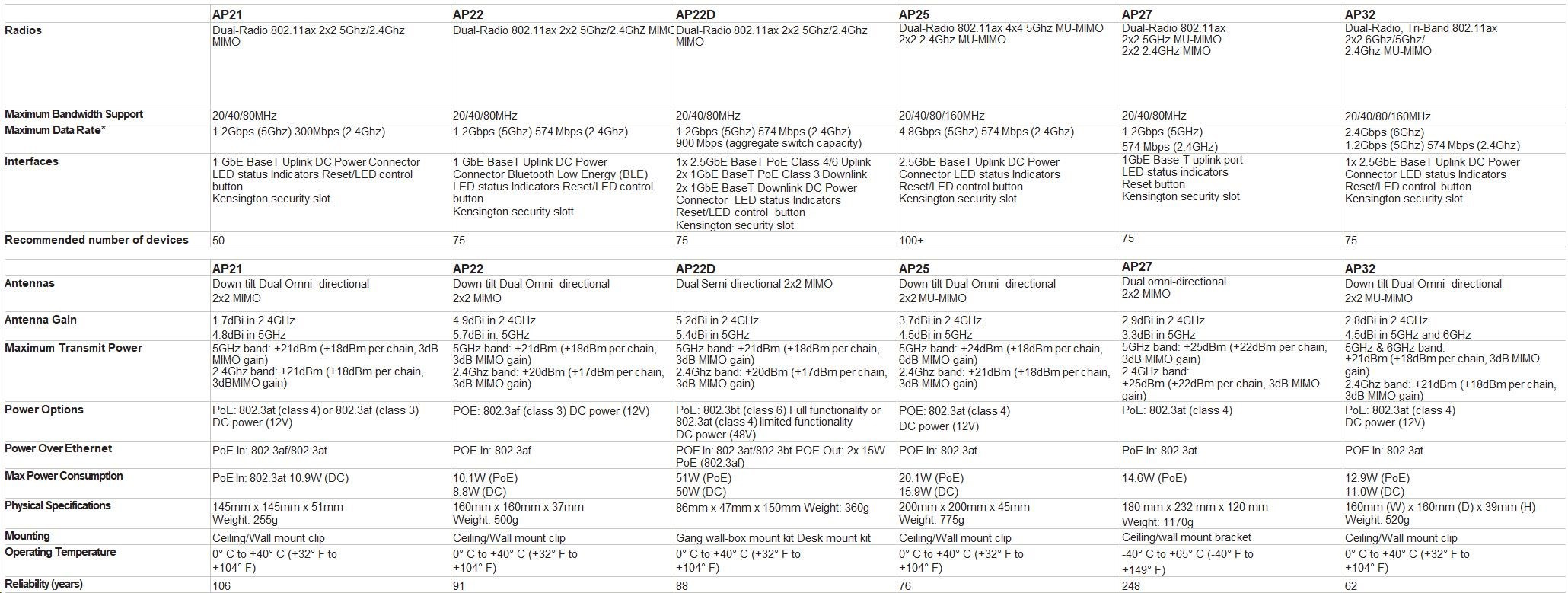

AP21

AP22

AP22D

AP25

AP27

AP32

Radios

Dual-Band 802.11ax 2x2 5Ghz/2.4Ghz

MIMO

Dual-band 802.11ax 2x2 5Ghz/2.4GhZ MIMO

Dual-band 802.11ax 2x2 5Ghz/2.4Ghz MIMO

Dual-Band 802.11ax 4x4 5Ghz MU-MIMO

2x2 2.4Ghz MU-MIMO

Dual-Band 802.11ax

2x2 5GHz MU-MIMO

2x2 2.4GHz MIMO

Tri-band 802.11ax

2x2 6Ghz/5Ghz/ 2.4Ghz MU-MIMO

Maximum Bandwidth Support

20/40/ 80MHz

20/40/ 80MHz

20/40/ 80MHz

20/40/80/ 160MHz

20/40/ 80MHz

20/40/80/ 160MHz

Maximum Data Rate*

1.2Gbps (5Ghz) 300Mbps (2.4Ghz)

1.2Gbps (5Ghz) 574 Mbps (2.4Ghz)

1.2Gbps (5Ghz) 574 Mbps (2.4Ghz)

900 Mbps (aggregate switch capacity)

4.8Gbps (5Ghz) 574 Mbps (2.4Ghz)

1.2Gbps (5GHz)

574 Mbps (2.4GHz)

2.4Gbps (6Ghz)

1.2Gbps (5Ghz) 574 Mbps (2.4Ghz)

Interfaces

1 GbE BaseT Uplink DC Power Connector LED status Indicators Reset/LED control button

Kensington security slot

1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE)

LED status Indicators Reset/LED control button

Kensington security slott

1x 2.5GbE BaseT PoE Class 4/6 Uplink

2x 1GbE BaseT PoE Class 3 Downlink

2x 1GbE BaseT Downlink DC Power Connector LED status Indicators Reset/LED control button

Kensington security slot

2.5GbE BaseT Uplink DC Power Connector LED status Indicators Reset/LED control button

Kensington security slot

1GbE Base-T uplink port

LED status indicators

Reset button

Kensington security slot

1x 2.5GbE BaseT Uplink DC Power Connector LED status Indicators Reset/LED control button

Kensington security slot

Recommended number of devices

50

75

75

100+

75

75

Antennas

Down-tilt Dual Omni- directional

2x2 MIMO

Down-tilt Dual Omni- directional

2x2 MIMO

Dual Semi-directional 2x2 MIMO

Down-tilt Dual Omni- directional

2x2 MU-MIMO

Dual omni-directional

2x2 MIMO

Down-tilt Dual Omni- directional

2x2 MU-MIMO

Antenna Gain

1.7dBi in 2.4GHz

4.8dBi in 5GHz

4.9dBi in 2.4GHz

5.7dBi in. 5GHz

5.2dBi in 2.4GHz

5.4dBi in 5GHz

4.2dBi in 2.4GHz

7.5dBi in 5GHz

3.2dBi in 2.4GHz

5.4dBi in 5GHz

2.8dBi in 2.4GHz

4.5dBi in 5GHz and 6GHz

Maximum Transmit Power

5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

2.4Ghz band: +21dBm (+18dBm per chain, 3dBMIMO gain)

5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

2.4Ghz band: +20dBm (+17dBm per chain, 3dB MIMO gain)

5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

2.4Ghz band: +20dBm (+17dBm per chain, 3dB MIMO gain)

5GHz band: +24dBm (+18dBm per chain, 6dB MIMO gain)

2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

5GHz band: +25dBm (+22dBm per chain, 3dB MIMO gain)

2.4GHz band:

+25dBm (+22dBm per chain, 3dB MIMO gain)

5GHz & 6GHz band:

+21dBm (+18dBm per chain, 3dB MIMO gain)

2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

Power Options

PoE: 802.3at (class 4) or 802.3af (class 3)

DC power (12V)

POE: 802.3af (class 3) DC power (12V)

PoE: 802.3bt (class 6) Full functionality or 802.3at (class 4) limited functionality

DC power (48V)

POE: 802.3at (class 4) DC power (12V)

PoE: 802.3af (class 4)

PoE: 802.3bt (class 6) or 802.3at (class 4)

DC power (12V)

Power Over Ethernet

PoE In: 802.3af/802.3at

POE In: 802.3af

POE In: 802.3at/802.3bt POE Out: 2x 15W PoE (802.3af)

POE In: 802.3at

PoE In: 802.3at

POE In: 802.3at

Max Power Consumption

PoE In: 802.3at 10.9W (DC)

10.1W (PoE)

8.8W (DC)

51W (PoE)

50W (DC)

20.1W (PoE)

15.9W (DC)

14.6W (PoE)

12.9W (PoE)

11.0W (DC)

Physical Specifications

145mm x 145mm x 51mm

Weight: 255g

160mm x 160mm x 37mm

Weight: 500g

86mm x 47mm x 150mm Weight: 360g

200mm x 200mm x 45mm

Weight: 775g

180 mm x 232 mm x 120 mm

Weight: 1170g

160mm (W) x 160mm (D) x 39mm (H) Weight: 520g

Mounting

Ceiling/Wall mount clip

Ceiling/Wall mount clip

Gang wall-box mount kit Desk mount kit

Ceiling/Wall mount clip

Ceiling/wall mount bracket

Ceiling/Wall mount clip

Operating Temperature

0° C to +40° C (+32° F to

+104° F)

0° C to +40° C (+32° F to

+104° F)

0° C to +40° C (+32° F to

+104° F)

0° C to +40° C (+32° F to

+104° F)

-40° C to +65° C (-40° F to

+149° F)

0° C to +40° C (+32° F to

+104° F)

Reliability (years)

106

91

88

76

248

62

HPE Networking Instant On Wi-Fi 6 Access Points

High-speed Wi-Fi designed with small business in mind

The HPE Networking Instant On Wi-Fi 6 Access Points portfolio is designed to meet the increasing volume of connected devices that face small businesses. Our range of Wi-Fi Certified 6 access points delivers superior performance, coverage, and speed at a competitive price that is perfect for small and growing businesses.

The HPE Networking Instant On Wi-Fi 6 Access Points family has the right access point to fit your business needs. From cost-effective single room streaming to conference room collaboration to exhibition hall environments, our wireless solutions make your network accessible and efficient.

From IoT and point-of-sale devices to hundreds of guests connecting to your network, you need hardware that can keep up with changing daily demands without intervention. HPE Networking Instant On Wi-Fi 6 access points are designed to host from 30 to over 150 simultaneous connections. Our smart cloud management features are simple to use and quick to set up, with many enterprise-class features enabled by default.

The Wi-Fi 6 family features MU-MIMO, OFDMA, and up to 4 spatial streams to keep users and devices connected while the built-in TPM, WPA3, and wire­less access control lists keep your network secure. Setting up guest and employee networks is just a few taps away on the HPE Networking Instant On mobile app. The Smart Mesh and range-boosting features in the mobile app combined with automatic beamforming provide coverage to those hard-to-reach areas of your business.

We know the critical role that Wi-Fi plays in busi­ness today - no one can afford downtime. The HPE Networking Instant On Wi-Fi 6 Access Points family is designed for rapid deployment and simplified management. Be it mounting hardware, remote device management or access to the latest business-grade software, the HPE Networking Instant On Wi-Fi 6 Access Points hardware makes your life easier.

Product Line-Up

The HPE Networking Instant On Wi-Fi 6 family has the right access point to fit your business needs. From cost-effective single room streaming to conference room collaboration to exhibition hall environments, our wireless solutions make your network accessible and efficient.

Key Features

• Ultra-fast 802.11ax
• Available 2.5 Gigabit
• Wi-Fi CERTIFIED 6TM (Wi-Fi 6)
• MU-MIMO performance
• Smart Mesh Wi-Fi support
• Easy-to-use web and mobile app for setup and management
• Secure guest Wi-Fi with simple setup
• Application classification, control, and visibility
• Superior client roaming with ClientMatch

Highlights

• Simplicity at its best.

Wi-Fi that works right out of the box

Performance that keeps your users happy

• Security you can count on
• Protection against compromised login
• credentials with Two-Factor Authentication
• Future-ready WPA2/WPA3/OWE authentication for secure Wi-Fi access

In The Box

• HPE Networking Instant On Access Point
• HPE Networking Instant On Quick Start Guide (AP22 and AP25)
• Combined ceiling and wall rail mount clip
• Desktop mount (AP22D only)
• Ethernet cable
• DC power adapter with select bundles

Next-Generation 802.11ax Wi-Fi Features

160MHZ Client Bandwidth Support (Ap25 Exclusive)

With 160MHz bandwidth support in 11ax, HE160 mode delivers higher performance with 160MHz supported clients. Smart Mesh performance can be doubled with the 160MHz bandwidth support on 5GHz backhaul.

Orthogonal Frequency-Division Multiple Access (OFDMA)

Allows access points (APs) to handle multiple Wi-Fi 6-capable clients on each channel simultaneously regardless of device or traffic type. This improves efficiency by boosting overall capacity, while reducing latency.

Target Wake Time (TWT)

Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This helps reduce power consumption, extending the battery life of clients.

Multiuser, Multiple Input, Multiple Output (MU-MIMO)

Allows you to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) at the same time.

1024-Quadrature Amplitude Modulation (1024-Qam)

Enables a 25% data increase over 256 QAM, improving throughput in your access points and devices.

SSID Scheduling

Allows you to automatically enable or disable your networks. If you have certain visitor hours or times for guests to connect, easily set the network schedule in the Instant On app or web portal to provide connectivity to those users.

Smart Mesh

Extend your network coverage wirelessly using the Smart Mesh feature. Once the first AP is connected, simply plug in the 2nd AP to a second power source with the DC power adapter and with a single click or tap, the secondary APs will connect to the primary

AP over the 5Ghz wireless band. Extended network coverage without the network cables.

Trusted Platform Module (TPM)

All HPE Networking Instant On Access Points have an installed TPM for secure storage of credentials, keys, and boot codes.

Basic Service Set Coloring (BSS Coloring)

Allows the network to assign a "color" tag to a channel and reduce the threshold for interference. Network performance is improved because APs on the same channel can be closer together and still transmit at the same time if they are different colors.

HPE Networking Advanced Cellular Coexistence (ACC)

Uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small-cell or femtocell equipment.

Low Density Parity Check (LDPC)

Delivers high-efficiency error correction for increased throughput.

Transmit Beamforming (TxBF)

Delivers increased signal reliability and range.

ClientMatch

Uses a system-level view of the entire network to continuously monitor the health of connected devices. The data of these connected devices is shared among APs to prevent over-subscriptions. ClientMatch will dynamically move clients appropriately without the need for intervention.

Active Ratio Management (Arm)

Solves wireless networking challenges for large or dense installs that support mobile devices like phones or laptops. ARM will intelligently adjust the channel and transmit power for frequency to ensure all users are allowed access. ARM is also application-aware and will change a device's band depending on the type of networking traffic they are utilizing.

The HPE Networking Instant On Differentiators

Tailored User Experiences

Customize the experience with logos, authentications, and rules of use. Set data usage per app. Limit duration of use. Use an external portal or RADIUS server to track guest login. Create open guest networks for quick and easy access. With the HPE Networking Instant On mobile app, you can apply bandwidth limits for your clients or your network to prioritize certain networks.

PPPoE and Static IP

The HPE Networking Instant On Access Points can handle PPPoE configuration with VLAN support, and act as a DHCP server, providing IP addresses to the wireless network. Assigning a static IP address on an access point allows users to use the same IP address regardless of where the access point is connected, making it easier to access its setup page for any configuration changes.

No Hidden Fees

All features are included in the price of the hardware - there are no recurring subscription or licensing fees. Expert-level community support and an industry- leading 2-year warranty are also included. 24/7 phone support for the first 90 days, starting when you on-board the device to the cloud, and chat support for the remainder of the warranty.

No Hidden Fees

All features are included in the price of the hardware and there are no recurring subscription or licensing fees. Expert-level community support, and industry- leading 2-year warranty IA is also included, along with chat support during the warranty period.
