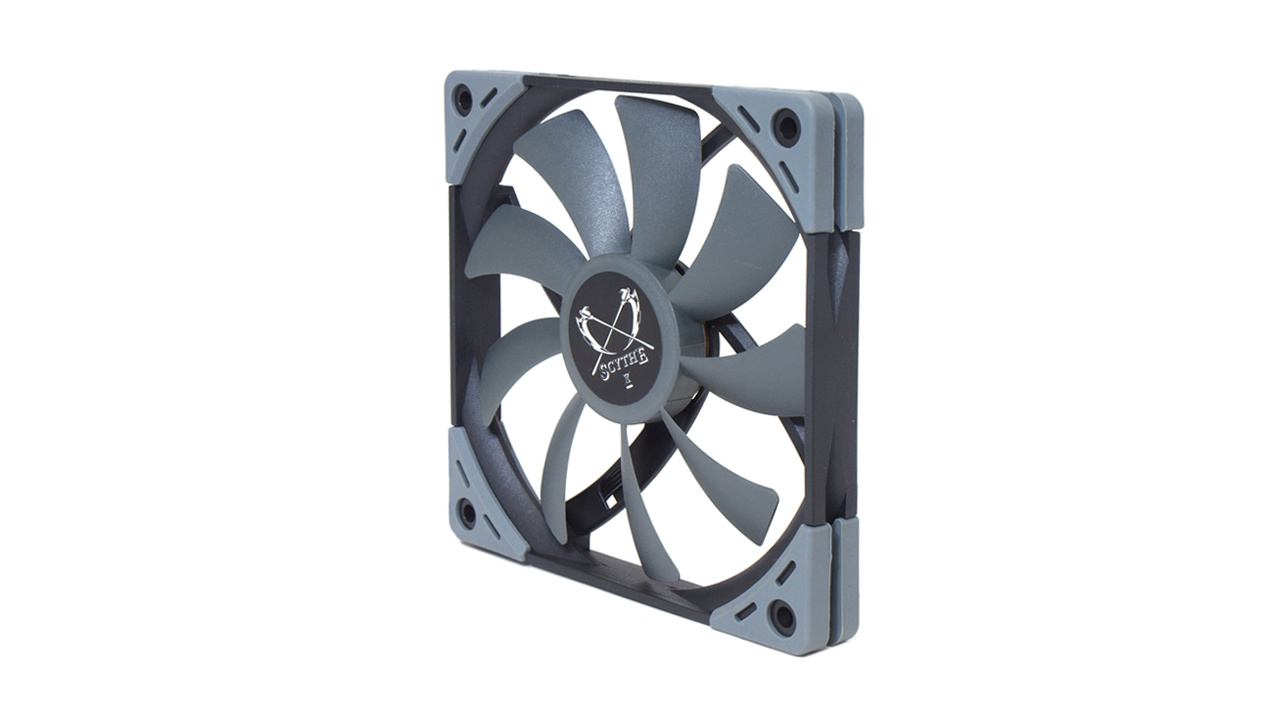

SCYTHE KF1215FD18-P Kaze Flex 120 mm Slim PWM Fan

Skvělý SCYTHE ventilátor s rozměry 120x120x17mm s otáčkami řízenými PWM od 300 (± 200) ~ 1800rpm (± 10%) a speciálními Sealed Precision FDB ložisky se MTBF 120,000 hodin (při 25 ° C)

Model number KF1215FD18-P
JAN 4571225057466
size 120 × 120 × 17mm thick
Rotation speed (PWM variable) 300 (± 200) ~ 1800rpm (± 10%)
Noise and air volume 2.7-30 dBA / 8.28-50.79 CFM
Static pressure 0.23 ~ 1.35mmH2O / 2.26-13.24Pa
Rated current 0.18 A
Drive voltage DC12V
rib None
weight 95 g
Fan connection PWM 4-pin
cable length Fan cable 30cm (can be extended up to 50cm)
bearing Sealed Precision FDB
MTBF 120,000 hours (25 ° C)

KAZE-FLEX 120mm SLIM PWM

Model number: KF1215FD18-P / JAN: 4571225057446

120mm case fan "KAZE FLEX" slim type

· 120mm square, 17mm thin case fan "KAZE FLEX 120 SLIM" Lineup of normal model ( 1800rpm ) and 4-pin RGB model (1800rpm)

Sealed Precision FDB

· High oil holding capacity that suppresses volatilization and leakage due to the completely sealed bearing structure with the oil sealing cap removed.
· High lubrication effect and quietness are exhibited by the fluid bearing structure that stores oil in the space between the rotating shaft and the bearing. High-strength and high-durability high alloy is used for the bearing part to achieve low friction and long life
· Uses high-quality lubricating oil that can withstand high temperatures of 200 to 250 ° C

Shock absorbing rubber pad

-Excellent vibration absorption and fan stability.

Extender cable specifications

· The fan cable is usually 30cm. By extension cable, it can be extended up to 50Cm
(RGB cable will be impossible extended 50cm)

Accessories

· Extender cable for fan, mounting screw

Package

· 128 (W) × 201 (H) × 20 (D) mm · 145 g

Slim version of 120mm case fan "KAZE FLEX"
Variable PWM, 300-1800 rpm
Sealed Precision FDB (High-precision sealed FDB)
Adopts a completely sealed bearing structure that eliminates the oil-filled cap.
This achieves a high holding capacity that minimizes oil volatilization and leakage
Oil in the space between the rotating shaft and bearing High lubricating effect and quietness due to the fluid bearing structure that stores oil
High durability and low friction are realized by using a high alloy with high strength and durability for the bearing part
High quality lubrication that can withstand high temperatures of 200 to 250 ° C Uses oil.


By adopting the shock absorbing rubber pad "shock absorbing rubber pad", it is excellent in vibration absorption and fan stability.

High life
high life of the MTBF 12 million hours in an environment of 25 ?

Extender cable specification The
fan cable is usually 30cm and can be
extended up to 50cm with the extension cable (RGB cable cannot be extended and becomes 50cm)

Accessories: Extender cable for fan, mounting screw

4-pin PWM connection automatically changes fan speed

120 x 120 x 17 mm thick, no ribs

Package dimensions and weight
128 (W) × 201 (H) × 20 (D) mm · 145 g

Model number KF1215FD18-P
JAN 4571225057466
size 120 × 120 × 17mm thick
Rotation speed (PWM variable) 300 (± 200) ~ 1800rpm (± 10%)
Noise and air volume 2.7-30 dBA / 8.28-50.79 CFM
Static pressure 0.23 ~ 1.35mmH2O / 2.26-13.24Pa
Rated current 0.18 A
Drive voltage DC12V
rib None
weight 95 g
Fan connection PWM 4-pin
cable length Fan cable 30cm (can be extended up to 50cm)
bearing Sealed Precision FDB
MTBF 120,000 hours (25 ° C)
