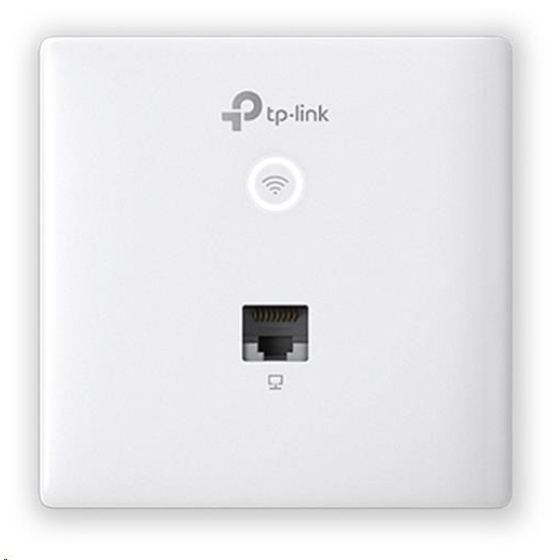

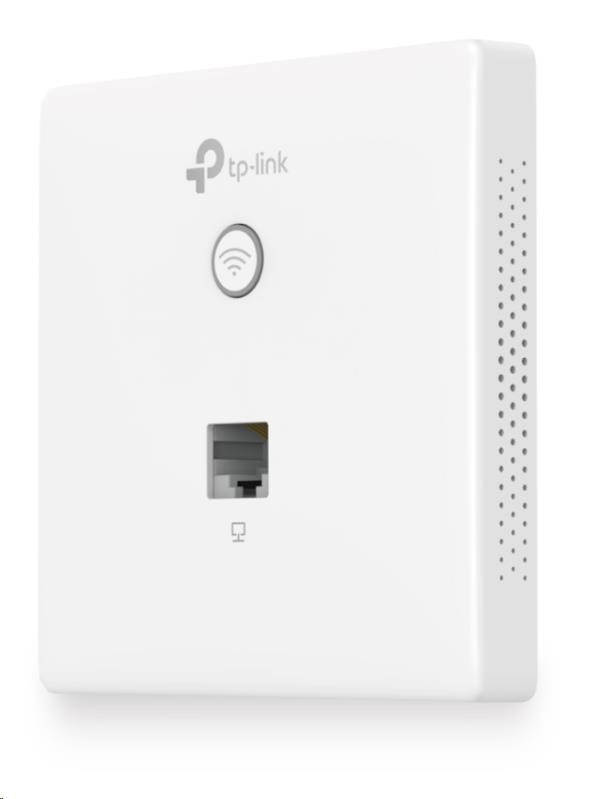

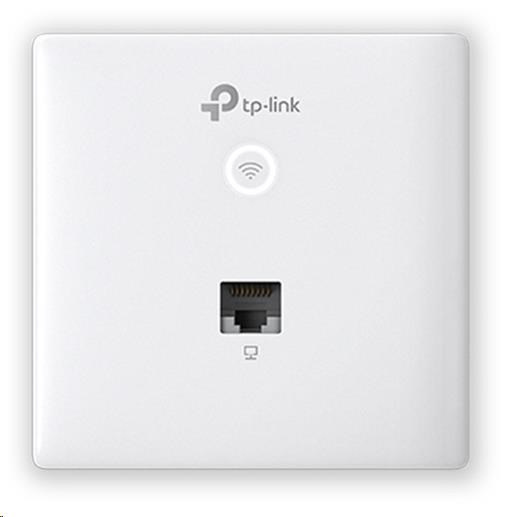

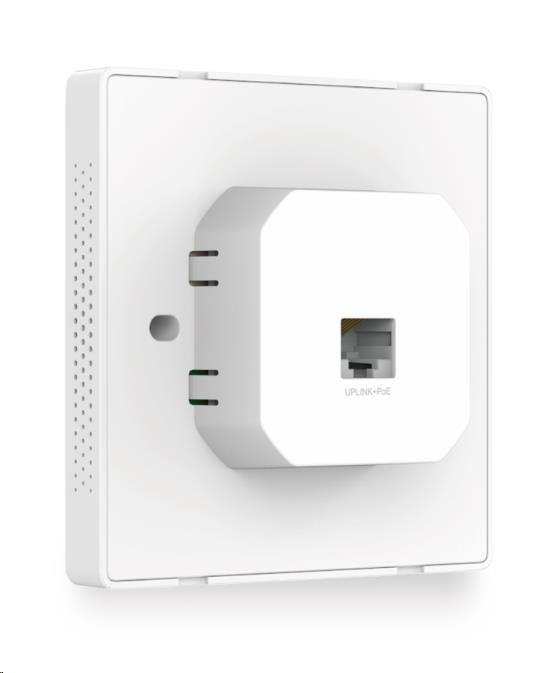

Přístupový bod EAP230-Wall je navržen tak, aby vyhověl všem požadavkům sítí v prostředích s mnoha oddělenými místnostmi, jako jsou hotely, kanceláře a ubytovací zařízení. Zařízení instalované v každé místnosti zajistí vyhrazené vysokorychlostní připojení k síti Wi-Fi pro každého uživatele.
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-access-point/eap230-wall/
Technické specifikace
HARDWARE FEATURES | |
Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 1× 10/100/1000 Mbps Ethernet Port |
Physical Security Lock | No |
Button | LED/Wi-Fi Button, RESET |
Power Supply | 802.3af/802.3at PoE |
Power Consumption | 7 W |
Dimensions ( W x D x H ) | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
Dimensions | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 3.6 dBi |
Mounting | Wall Plate Mounting |
Hardware Watch Dog | Yes |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11n/g/b/ac |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | • 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps |
Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • MU-MIMO • Band Steering • Beamforming |
Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
Transmission Power | CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, EIRP)
|
MANAGEMENT | |
Omada App | Yes |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1,v2c |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
OTHERS | |
Certification | CE, RoHS |
Package Contents | • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall • Installation Guide • Mounting Screw |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
