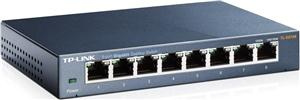

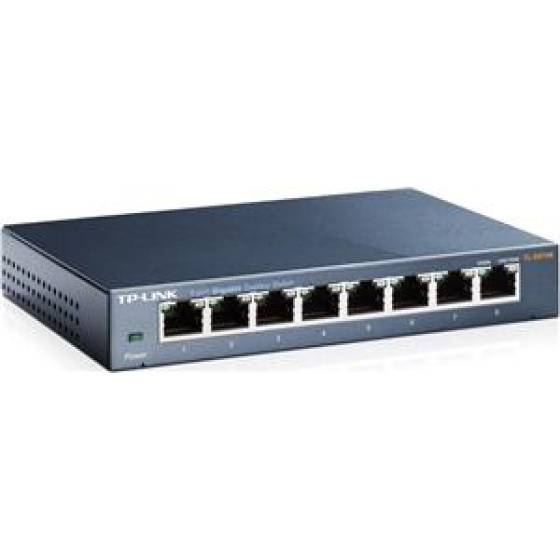

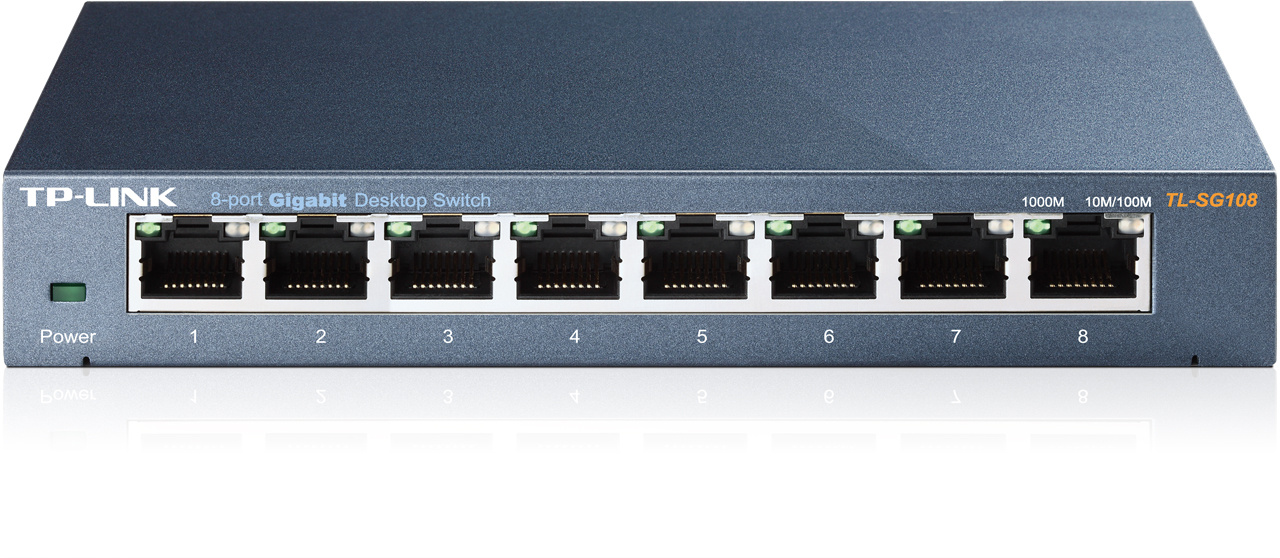

TP-Link TL-SG108 8x Gigabit Desktop Switch

8-Port 10/100/1000Mbps Desktop Switch

OVERVIEW
The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.

FEATURES
• Innovative energy-efficient technology saves power up to 72%
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Steel design, desktop or wall-mounting design
• Supports QoS (IEEE 802.1p) function
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 9K Jumbo frame improves performance of large data transfers
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation

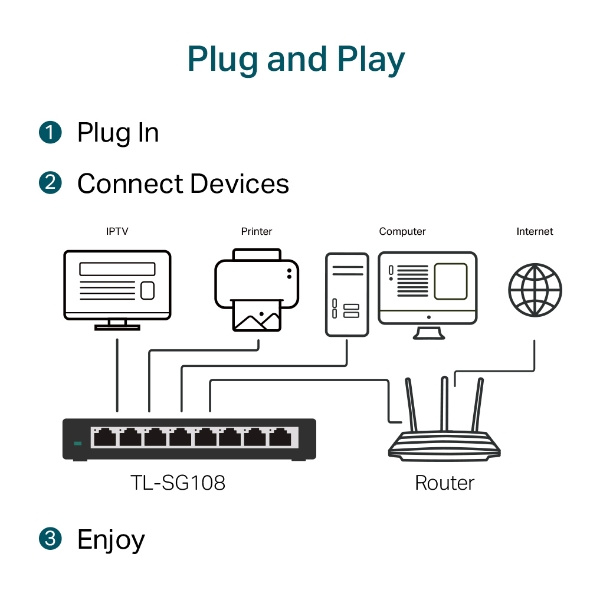

• Plug and Play design simplifies installation

HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3/802.3u/ 802.3ab/ 802.3x
• CSMA/CD

Interface
• 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

External Power Supply
• 100-240VAC, 50/60Hz

Dimensions (W X D X H)
• 158 x 101 x 25 mm

Fan Quantity
• Fanless

LED Indicator
• System Power
• Link, Speed and activity indicators per port built into each RJ-45 port

SOFTWARE FEATURES
Advanced Features
• Green Technology,saving power up to 72%
• 802.3X Flow Control
• Supports QoS (IEEE802.1P)

Transfer Method
• Store and Forward

OTHERS
Certification
• CE, FCC ,RoHS

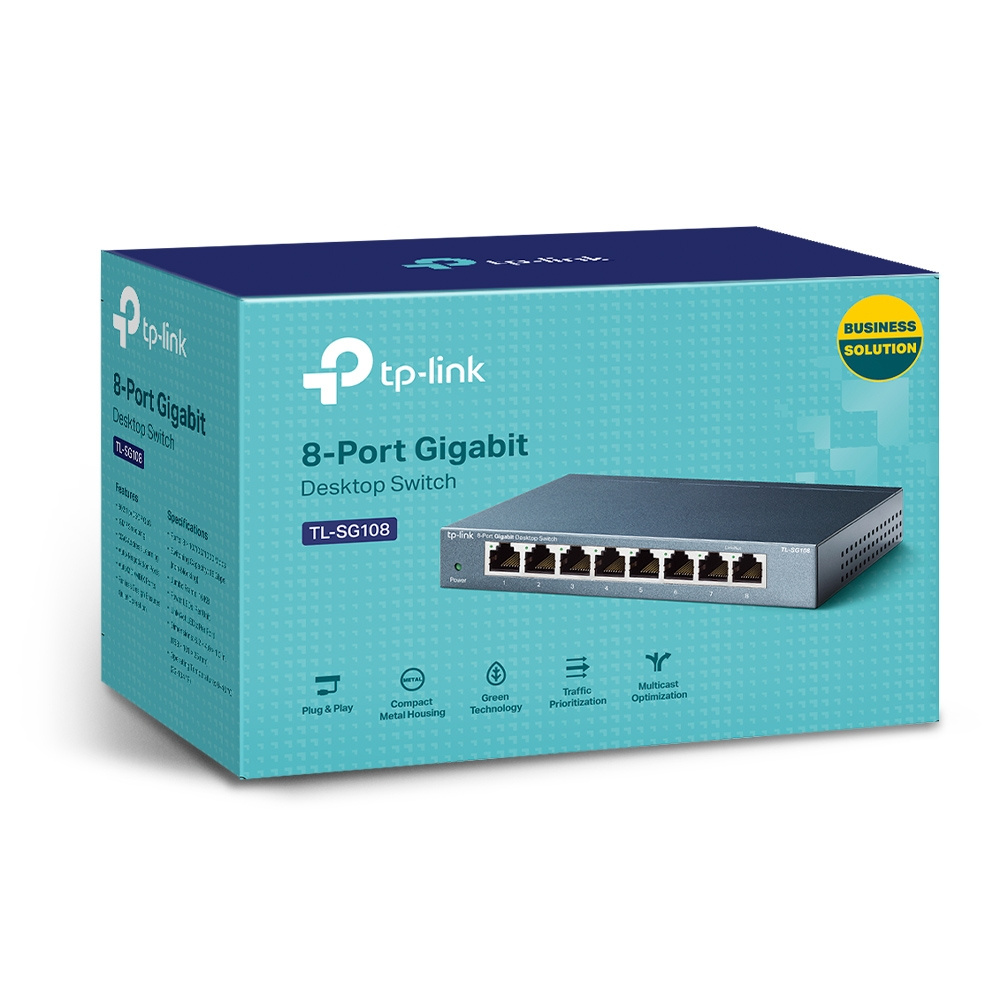

Package Contents
• 8-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• User Guide

System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Mac® OS, NetWare®, UNIX® or Linux.
