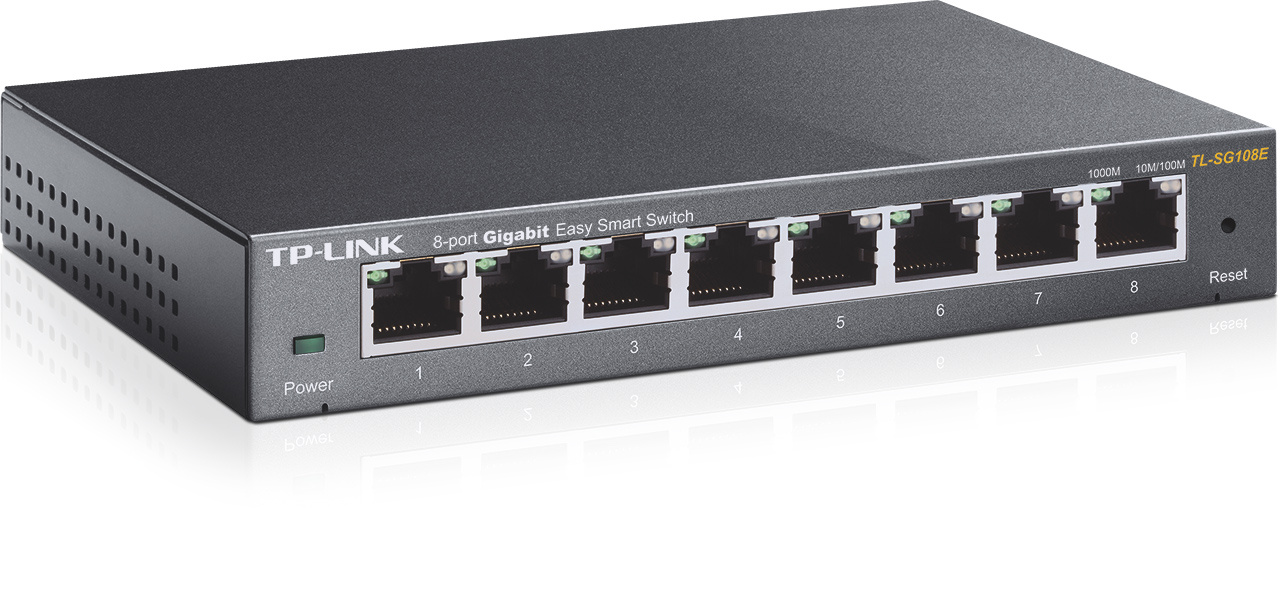

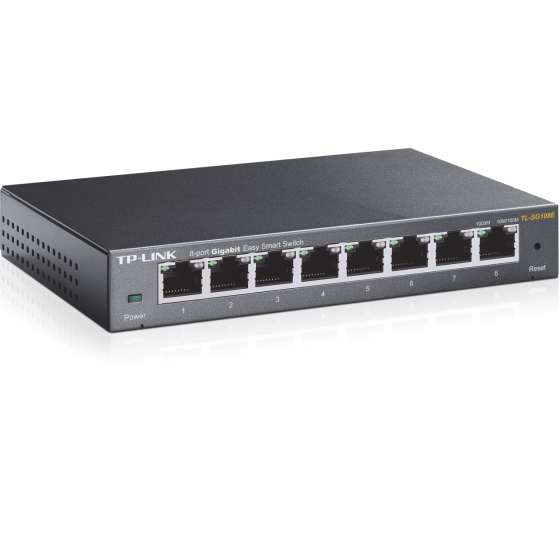

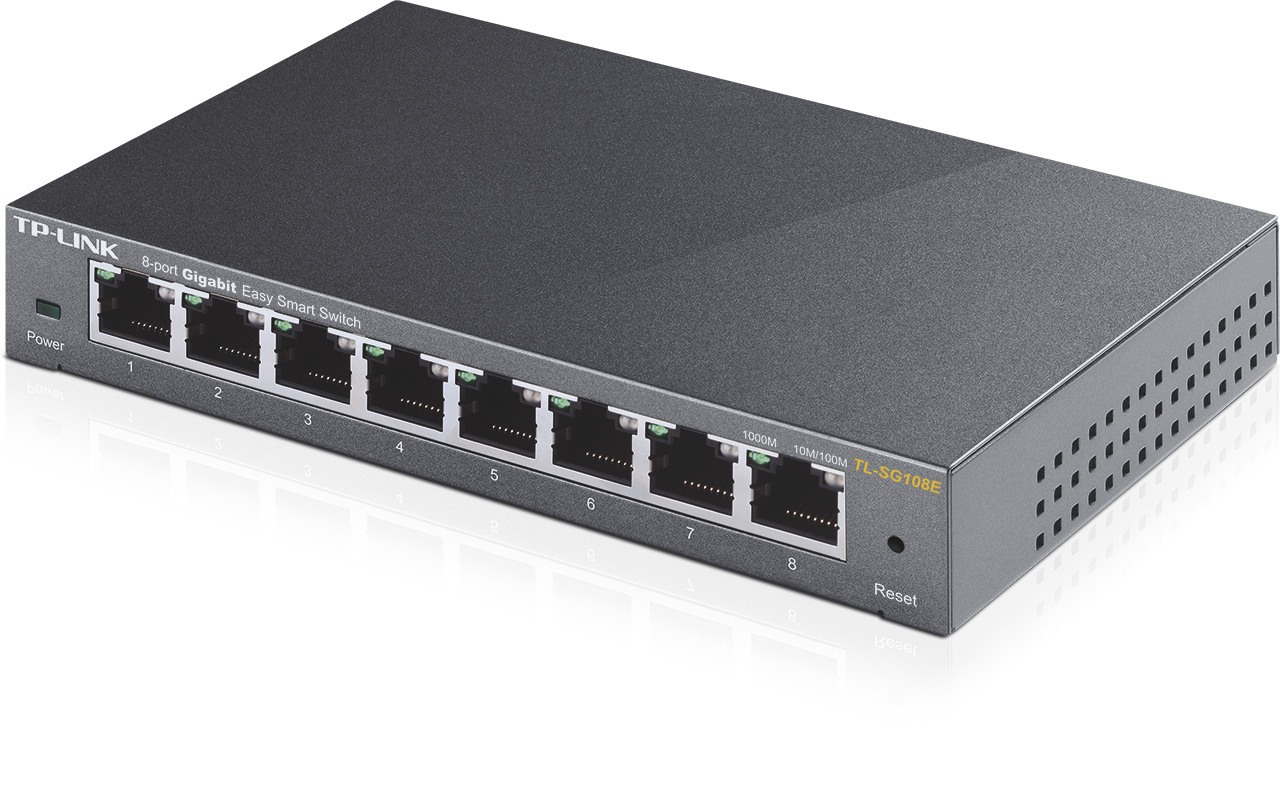

TP-Link TL-SG108E 8x Gb Fanless Easy Smart Switch

TP-Link TL-SG108E 8x Gigabit Easy Smart Switch

OVERVIEW
The TL-SG108E 8-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG108E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG108E can save up to 80% of power consumption, making it an eco-friendly solution for your business network.

SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
• 8 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)

Dimensions (W X D X H)
• 158*101*25 mm

Fan Quantity
• Fanless

Power Supply
• 100-240VAC, 50/60Hz

PERFORMANCE
MAC Address Table
• 8K

Packet Buffer Memory
• 2Mb

Packet Forwarding Rate
• 11.9Mpps

Jumbo Frame
• 16KB

SOFTWARE FEATURES
Quality of Service
• Support Port Based/802.1p Based priority
• Support 4 priority queues
• Rate Limit
• Storm Control

L2 Features
• IGMP Snooping
• Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Transmission Method
Store-And-Forward

OTHERS
Certification
• FCC, CE, RoHS

Package Contents
• TL-SG108E
• Power Cord
• Installation Guide
• Resource CD
• Rubber Feet

System Requirements
• Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment
• Operating Temperature: 0?~40?
• Storage Temperature: -40?~70?
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
