Vyhovuje standardu 802.3af/at PoE + a podporuje až 30 W napájení na každém PoE portu. Celkový výkon napájení až 250 W PoE pro 24× PoE porty, umožňuje široké spektrum aplikací, jako je dohled, kanceláře, koleje a malé podniky. Je plně kompatibilní s IP kamerami, přístupovými body, IP telefony, počítači, tiskárnami atd.
Stránky produktu: https://www.tp-link.com/cz/business-networking/unmanaged-switch/tl-sl1226p/
Technické specifikace
HARDWARE FEATURES | |
Interface | 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ohm STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ohm STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ohm STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | 2 Fans |
Physical Security Lock | Yes |
Power Supply | 100-240 VAC, 50/60 Hz |
Backup Bandwidth | 8.8 Gbps |
Packet Forwarding Rate | 6.5472 Mpps |
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W |
Mac Address Table | 8 K |
Jumbo Frame | 10 KB |
Switching Capacity | 8.8 Gbps |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Max Power Consumption | 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) |
Max Heat Dissipation | 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) |
SOFTWARE FEATURES | |

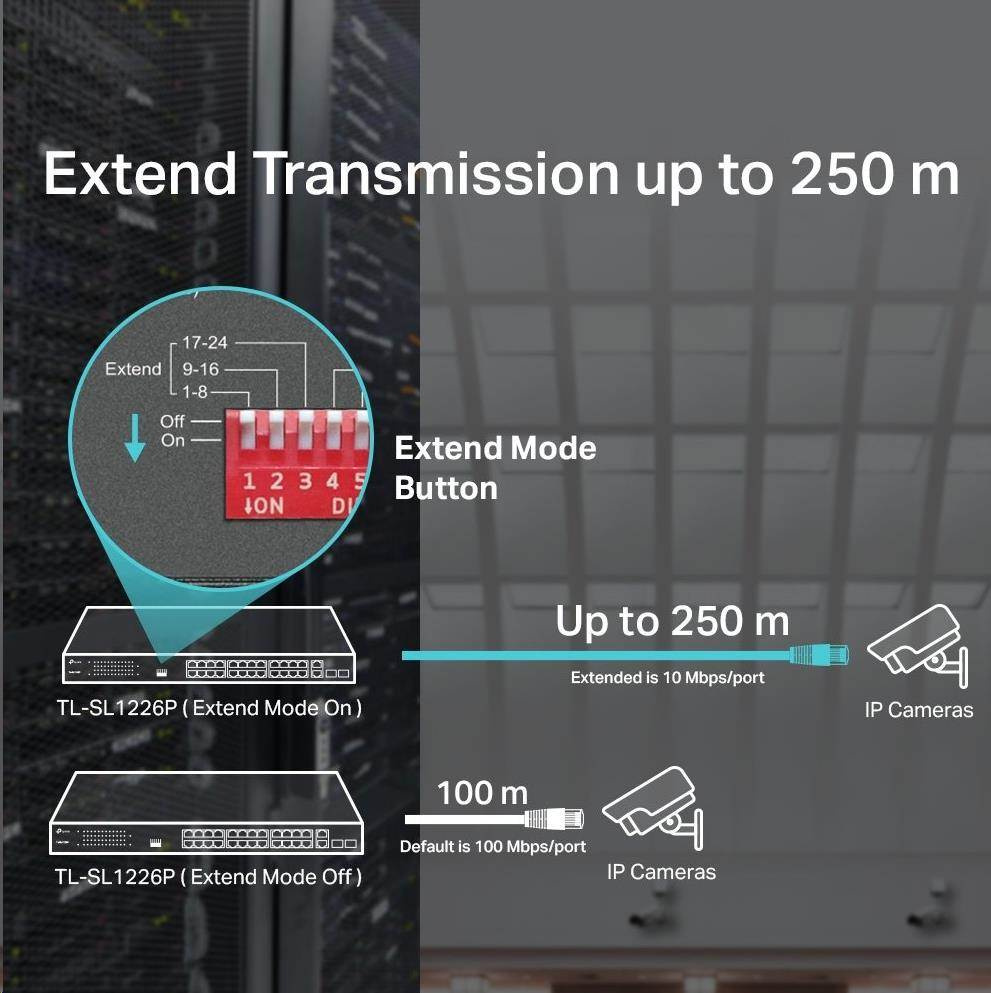

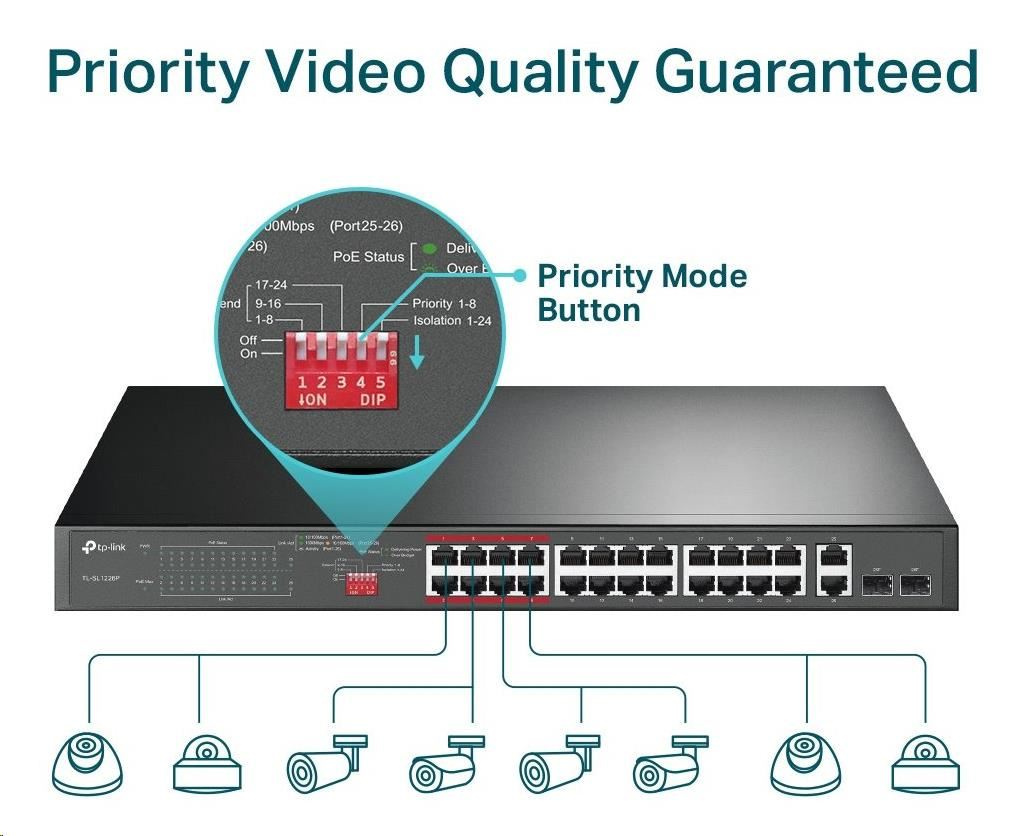

Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control |
Transmission Method | Store-And-Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | TL-SL1226P Power Cable Installation Guide Two mounting brackets and the fittings |
Environment | Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing |
.
