Technické specifikace
NETWORK | |
Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
Incoming Bandwith | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
GENERAL | |
Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
Operating Temperature | -10–55 °C |
Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
External Power Supply | 53.5V DC/1.31A |
Power Consumption | 4.25 W (without disk) |
VIDEO/IMAGE | |
Video Input | 4-Channel IP Video Input, up to 8MP Resolution |
Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
DECODING | |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |

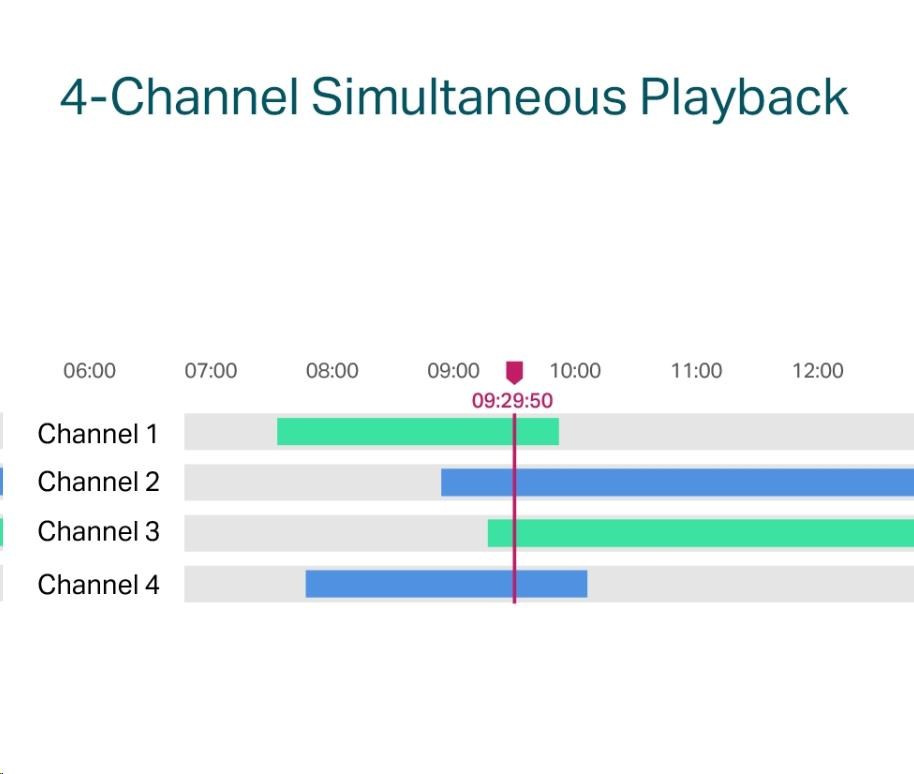

Synchronous Playback | 4 Channel |
Capability | 2-ch @ 8MP, 4-ch @ 4MP |
HARD DISK | |
SATA | 1 SATA Interface |
Capacity | Up to 10 TB |

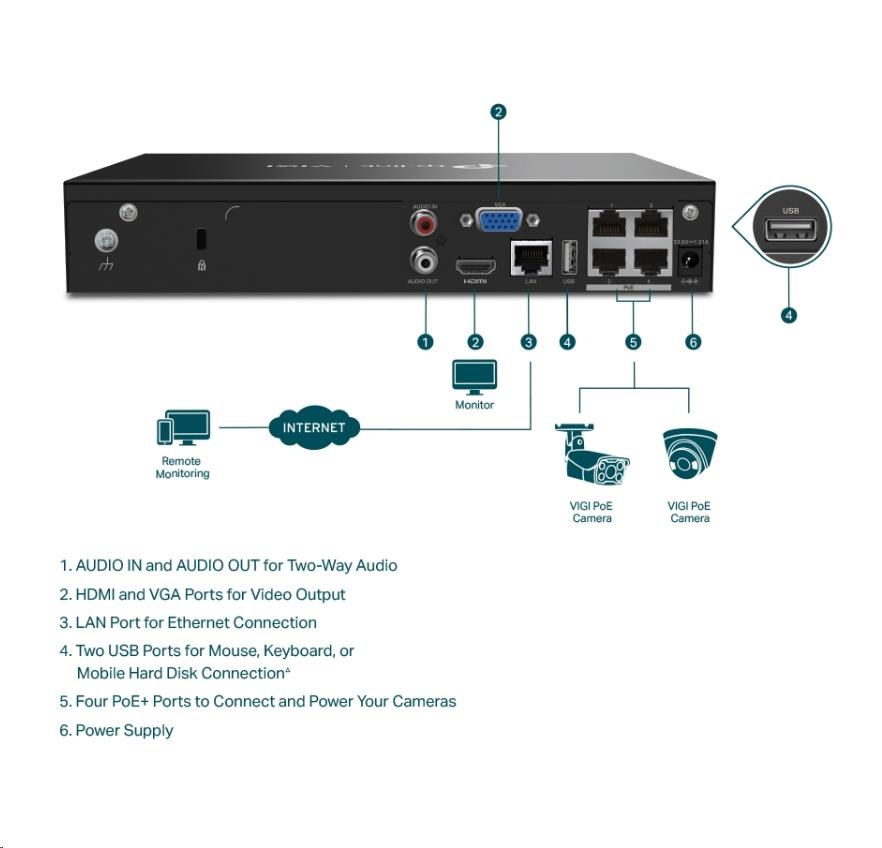

INTERFACES | |

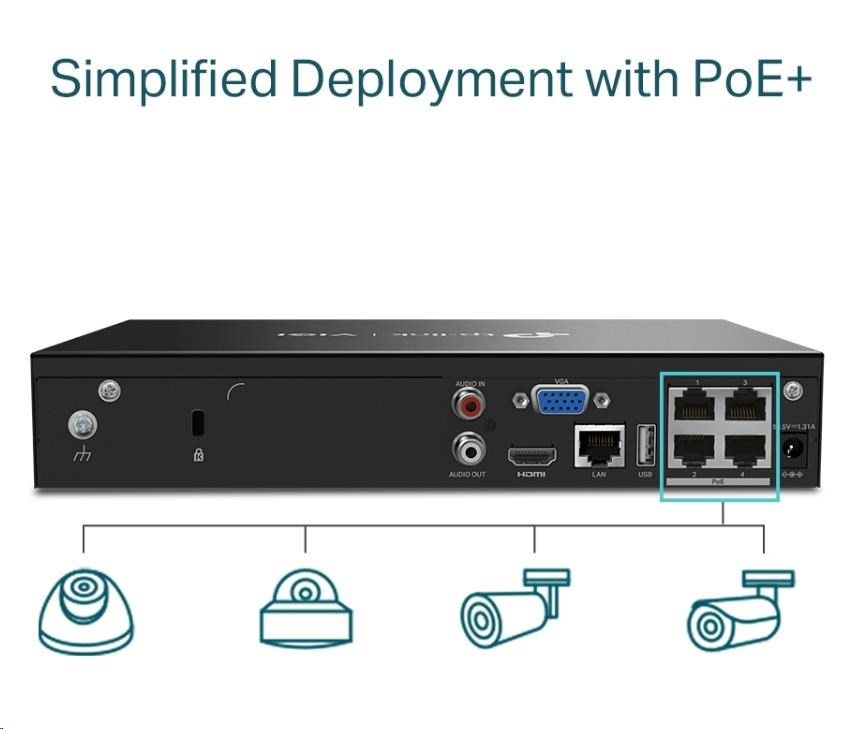

Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 2× USB 2.0 |
.
