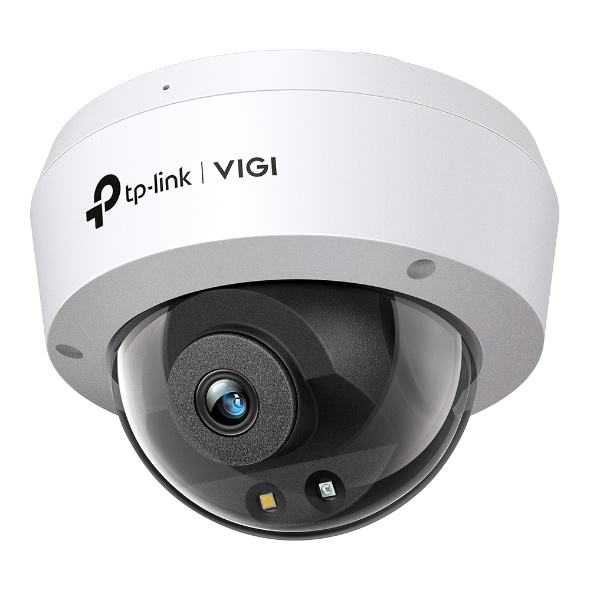

VIGI C250 (4mm) 5MP Full-Color Dome Nework Camera

VIGI C250(4mm)

---

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

---

Features
*5MP Super-High Definition:
*24h Full-Color
*Human & Vehicle Classification
*Smart Detection
*People & Vehicle Analytics
*Built-In Microphone
*IK10 Vandal-Proof & IP67 Waterproof
*H.265+
*Smart Video Enhancement
*PoE/12V DC
*Flexible Management and Storage

---

Specifications
CAMERA
Image Sensor
*1/2.7” Progressive Scan CMOS
Shutter Speed
*1/3 to 1/10000 s
Slow Shutter
*Yes
Minimum Illumination
*0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism
*IR Cut Filter
Day/Night Switch
*Day/Night/Auto/Schedule-Switch
LENS
Type
*Fixed Focal Lens
Focal Length
*4 mm
Aperture
*F1.6
FOV
*4mm: Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
Lens Mount
*M12*P 0.5
DORI Distance
*Detect: 64 m (209 ft)
*Observe: 27 m (87 ft)
*Recognize: 13 m (42 ft)
*Identify: 6 m (21 ft)
VIDEO
Max. Resolution
*2880 X 1620
Main Stream
*Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
*Resolution: 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream
*Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
*Resolution: 704x576,640x480, 352x288, 320x240
Bit Rate Control
*CBR, VBR
Video Compression
*Main Stream: H.265+/H.265/H.264+/H.264
*Sub-Stream: H.265/H.264
H.264 Type
*Main Profile/High Profile
H.264+
*Main Stream Supported
H.265 Type
*Main Profile
H.265+
*Main Stream Supported
Video Bit Rate
*Main Stream: 256 Kbps to 6 Mbps
*Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED
*Quantity: 1
*Range: 30m
*Wavelength: 850nm
White LED
*Quantity: 1
*Range: 30m
Illuminator On/Off Control
*Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range
*Pan: 0° to 360°, Tilt: 0° to 85°
Image Settings
*Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement
*BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
*120 dB
SNR
*? 52 dB
Image Parameters Switch
*Yes
Privacy Mask
*Up to 4 Masks
ROI
*1 Region
OSD Setting
*Yes
AUDIO
Audio Sampling Rate
*8KHz
Audio Bit Rate
*64 Kbps(G.711 alaw)
NETWORK
Security
*Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol
*TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network Storage
*NAS (NFS, SMB/ CIFS)
API
*Open Network Video Interface (Profile S)
Simultaneous Live View
*3 Main Streams & 3 Sub-Streams
Client
*VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser
*Google Chrome® 57 and above
*Firefox® 52 and above
*Safari® 11 and above
*Microsoft® Edge 91 and above
Cloud
*Yes
ONVIF
*Yes
INTERFACES
Network Interface
*1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Reset Button
*Yes
Power
*DC Power Port
On-board Storage
*Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone
*Yes, Records Anything Going on within a 15-ft Radius of the Camera
GENERAL
Package Contents
*VIGI Network Camera
*Quick Start Guide
*Waterproof Cable Attachments
*Mounting Accessories
Operating Temperature
*-30–60 °C
Storage Temperature
*-40–60 °C
Storage Humidity
95% or Less (Non-Condensing)
Operating Humidity
*95% or Less (Non-Condensing)
Material
*Plastic
Net Weight
*0.28 Kg
Gross Weight
*0.47 Kg
Power Supply
*12V DC ± 5%, 5.5mm Coaxial Power Plug
*PoE (802.3at, class 0)
Power Consumption
*Maximum: 7 W
*Typical (Day Mode): 1.5 W
*Typical (Night Mode with IR LED): 2.5 W
*Typical (Night Mode with White LED): 2.8 W
Protection
*IP67, IK10
Product Dimensions (L x W x H)
*?115x85.7 mm
Certifications
*CE, NTRA, VCCI, KC, BSMI, FCC, IC
