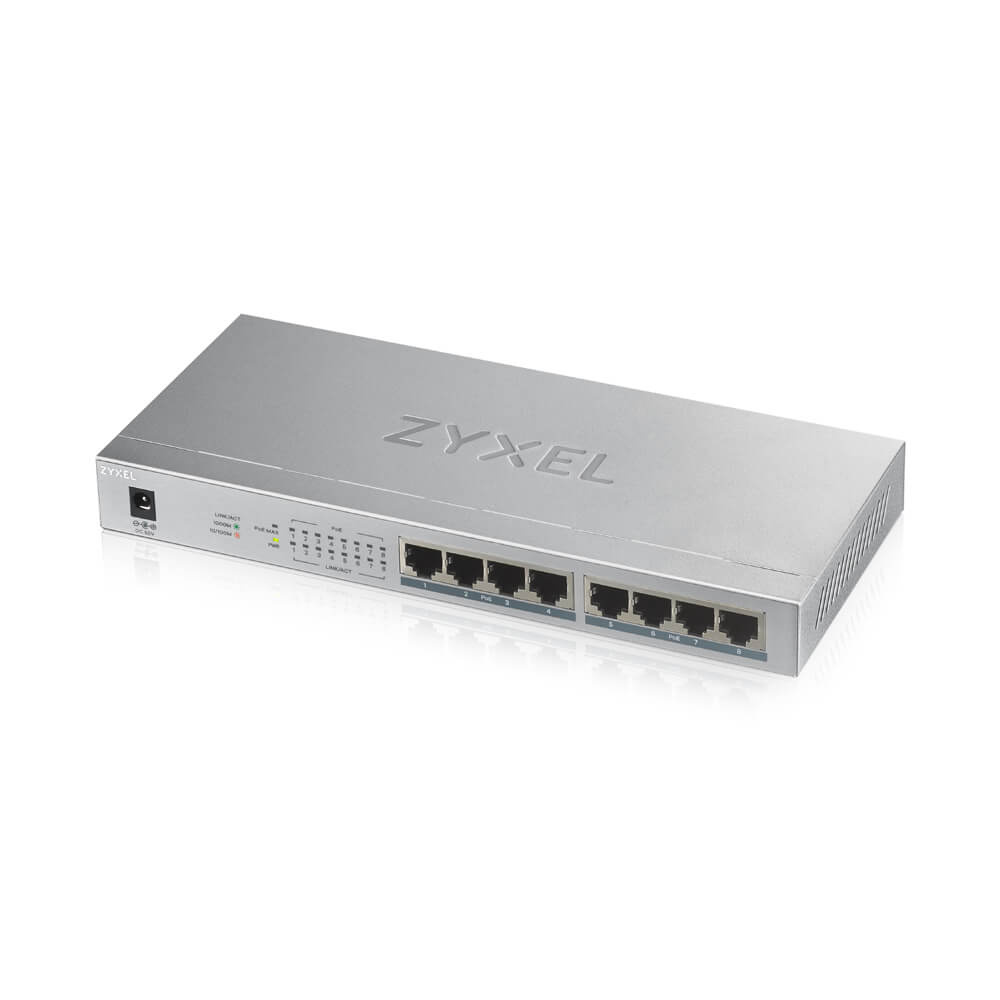

Zyxel GS1008-HP, 8 Port Gigabit PoE+ unmanaged desktop Switch, 8 x PoE, 60 Watt

Zyxel GS1008-HP, 8 Port Gigabit PoE+ unmanaged desktop Switch, 8 x PoE, 60 Watt

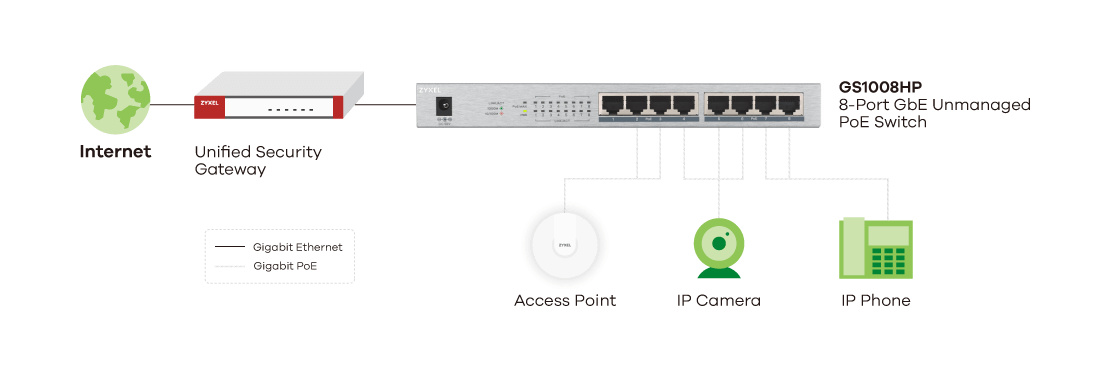

The Zyxel GS1008HP is equipped with 8 gigabit Ethernet ports, all of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1008HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1008HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses.

Technické specifikace
SYSTÉMOVÁ SPECIFIKACE
Standard:
*IEEE 802.3 10BASE-T Ethernet
*IEEE 802.3u 100BASE-TX Fast Ethernet
*IEEE 802.3ab 1000BASE-T Gigabit Ethernet
*IEEE 802.3 Nway auto-negotiation
*IEEE 802.3x full duplex operation and flow control
*IEEE 802.3az Energy Efficient Ethernet
Performance:
*Data transfer rate (half duplex/full duplex): Ethernet: 10/20 Mbps; Fast Ethernet: 100/200 Mbps; Gigabit Ethernet: 1000/2000 Mbps
*MAC address table: 4 K
*Memory buffer: 192 KB
*Switching fabric (non-blocking): 16 Gbps
Features:
*Compatible With IEEE 802.3af and 802.at Compliant PDs
*Auto-MDI/MDIX in all ports
*EEE802.3x Flow Control
*IEEE 802.1p QoS
*Jumbo frame support up to 9 KB

HARDWAROVÉ SPECIFIKACE
Interface: 8 RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
PoE Ports (RJ45):
*Standard: 802.3af and 802.3at compliant
*8 PoE+ ports, up to 30W per port
*Total PoE Budget : 60W
LED Indicator:
*PWR: Power
*PoE MAX: Amber: PoE power output over 50W (total budget 60W)
*Per port: Link/Activity: Amber: 10/100 Mbps; Green: 1000 Mbps
Per port : PoE+: Green: PoE supported
Power Supply:
*AC-to-DC external power adapter
*Input: 100-240 V AC
*Output: 55V DC/1.3A

OBSAH BALENÍ
*GbE Unmanaged PoE Switch
*Power adapter
*Quick Start Guide
